* TrenchFET® Power MOSFET
* Low Thermal Resistance PowerPAK® Package with Small Size and Low 0.75 mm Profile
* 100 % Rg and UIS Tested
* Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS
* Notebook Compute
SiSS27DN Datasheet (164.61 KB)
SiSS27DN
164.61 KB
P-channel 30 v (d-s) mosfet.

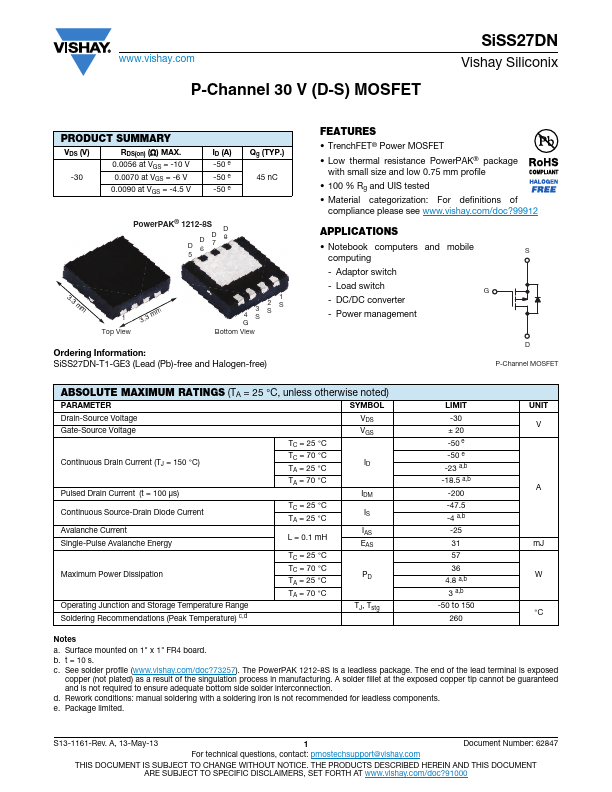

P-Channel 30 V (D-S) MOSFET
SiSS27DN
Vishay Siliconix
PRODUCT SUMMARY
VDS (V)
RDS(on) () Max.
0.0056 at VGS = - 10 V
- 30 0.0070 at VGS = - 6 V.
