SiSS5108DN N-Channel 100V MOSFET

Vishay

Description

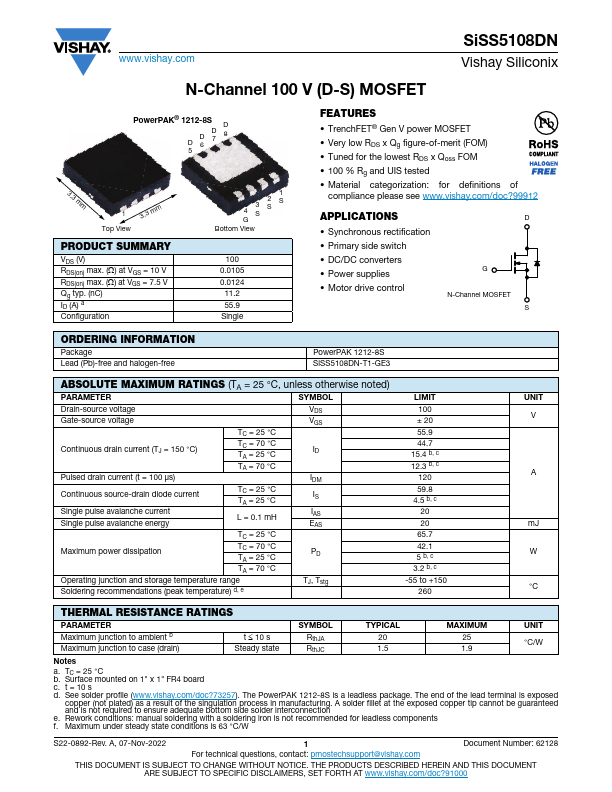

www.vishay.com SiSS5108DN Vishay Siliconix N-Channel 100 V (D-S) MOSFET PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View 3.3 mm PRODUCT.

📥 Download Datasheet

SiSS5108DN Datasheet Preview — Preview of SiSS5108DN PDF

Datasheet Specifications

Part number: SiSS5108DN
Manufacturer: Vishay ↗
File Size: 278.22 KB
Datasheet: SiSS5108DN-Vishay.pdf
Description: N-Channel 100V MOSFET

Features

* TrenchFET® Gen V power MOSFET
* Very low RDS x Qg figure-of-merit (FOM)
* Tuned for the lowest RDS x Qoss FOM
* 100 % Rg and UIS tested

Applications

* Synchronous rectification
* Primary side switch
* DC/DC converters
* Power supplies
* Motor drive control D G N-Channel MOSFET S ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8S SiSS5108DN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA
