SiSS52DN, N-Channel 30V MOSFET

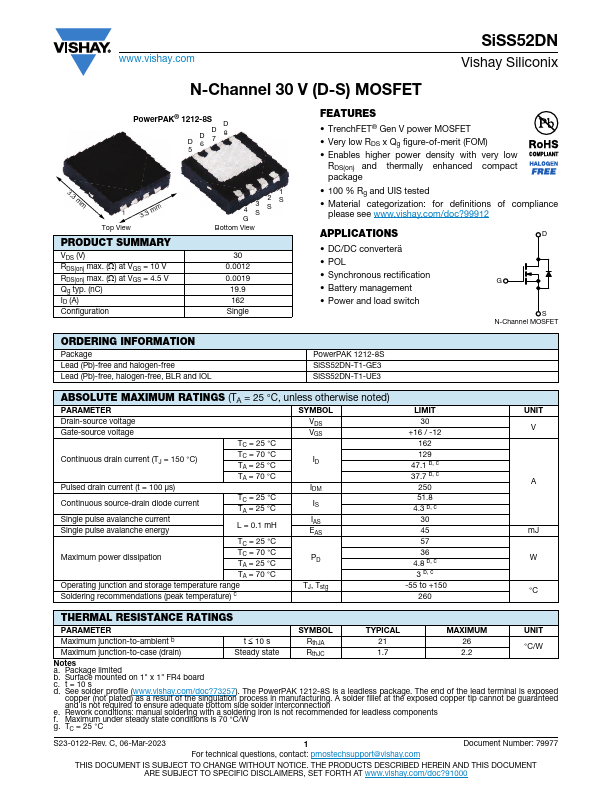

www.vishay.com SiSS52DN Vishay Siliconix N-Channel 30 V (D-S) MOSFET PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View 3.3 mm PRODUCT SU

Features

* TrenchFET® Gen V power MOSFET
* Very low RDS x Qg figure-of-merit (FOM)
* Enables higher power density with very low RDS(on) and thermally enhanced compact package
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance please see

Applications

* DC/DC converterä
* POL
* Synchronous rectification
* Battery management
* Power and load switch D G S N-Channel MOSFET PowerPAK 1212-8S SiSS52DN-T1-GE3 SiSS52DN-T1-UE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain
