T50RIA10 Medium Power Phase Control Thyristors

Vishay

T50RIA10 Description

T..RIA Series Vishay High Power Products Medium Power Phase Control Thyristors (Power Modules), 50 A/70 A/90 A .
These series of T-modules are intended for general purpose applications such as battery chargers, welders and plating equipment, regulated power suppl.

T50RIA10 Features

* Electrically isolated base plate
* Types up to 1200 VRRM
* 3500 VRMS isolating voltage
* Simplified mechanical designs, rapid assembly RoHS COMPLIANT
* High surge capability
* Large creepage distances
* UL E78996 approved
* RoH

T50RIA10 Applications

* such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits. The semiconductors are electrically isolated from the metal base, allowing common heatsinks and compact assemblies to be built. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CH

📥 Download Datasheet

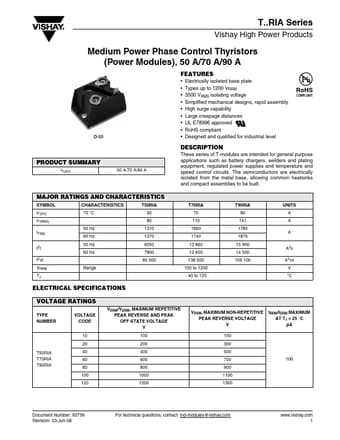

T50RIA10 Datasheet Preview — Preview of T50RIA10 PDF

Datasheet Details

Part number: T50RIA10
Manufacturer: Vishay ↗
File Size: 252.67 KB
Datasheet: T50RIA10-Vishay.pdf
Description: Medium Power Phase Control Thyristors
