TEMD6010FX01 - Ambient Light Sensor

TEMD6010FX01 Description

www.vishay.com TEMD6010FX01 Vishay Semiconductors Ambient Light Sensor 18527-1 .
TEMD6010FX01 ambient light sensor is a PIN photodiode with high speed and high photo sensitivity in a clear, surface mount plastic package.

TEMD6010FX01 Features

* Package type: surface mount
* Package form: 1206
* Dimensions (L x W x H in mm): 4 x 2 x 1.05
* Radiant sensitive area (in mm2): 0.27
* AEC-Q101 qualified
* High photo sensitivity
* Adapted to human eye responsivity
* Supression filte

TEMD6010FX01 Applications

* Automotive sensors
* Ambient light sensors
* Backlight dimming
* Mobil phones
* Notebooks
* Computers PRODUCT SUMMARY COMPONENT TEMD6010FX01 Ira (μA) 0.04 Note
* Test conditions see table “Basic Characteristics” ϕ (deg) ± 60 λ0.5 (nm) 43

📥 Download Datasheet

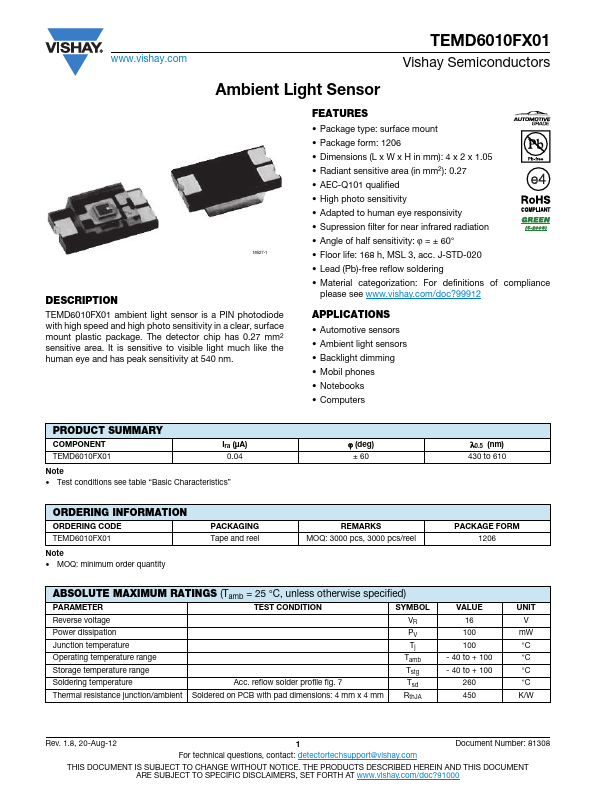

Preview of TEMD6010FX01 PDF

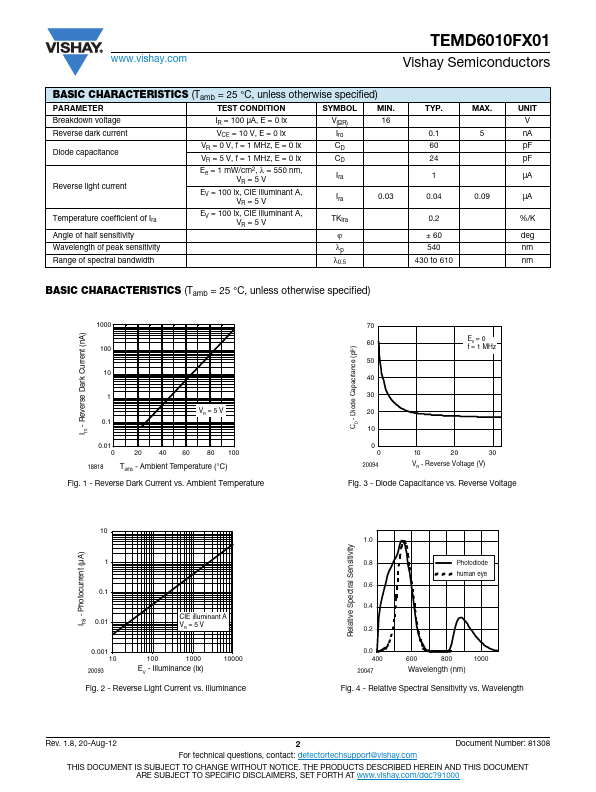

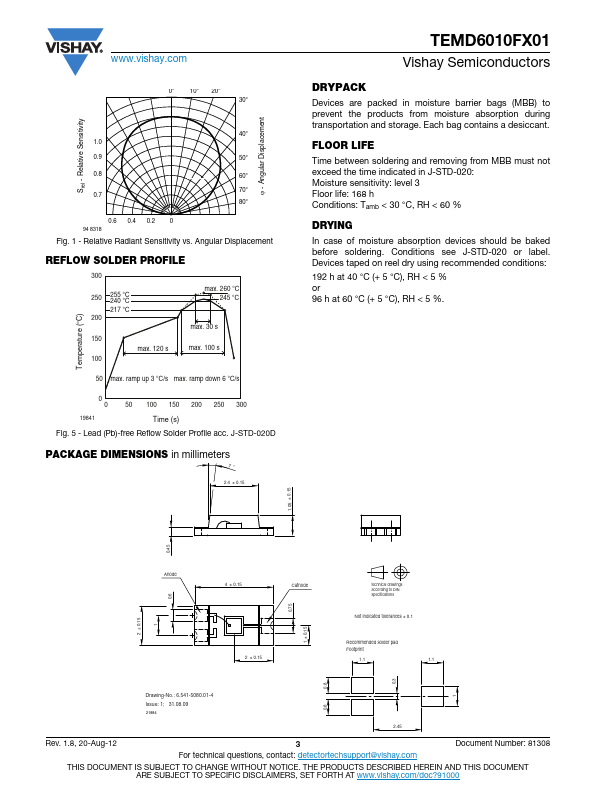

datasheet Preview Page 2 datasheet Preview Page 3
