TSOP2436, TSOP4830 Datasheet - Vishay

TSOP2436, TSOP4830, IR Receiver

Datasheet Values Refer to PCN-OPT-1224-2022 www.vishay.com TSOP22.., TSOP24.., TSOP48.., TSOP44..Vishay Semiconductors IR Receiver Modules for Rem.
This IR receiver series is optimized for long burst remote control systems in different environments.

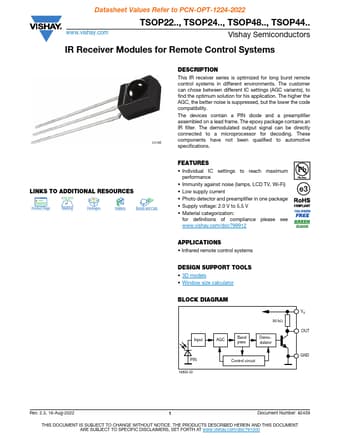

datasheet Preview Page 1 from Datasheet4u.com

TSOP4830-Vishay.pdf

TSOP2436 Datasheet Preview — This datasheet PDF includes multiple part numbers: TSOP2436, TSOP4830. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TSOP2436, TSOP4830

Manufacturer:

Vishay ↗

File Size:

215.80 KB

Description:

IR Receiver

Note:

This datasheet PDF includes multiple part numbers: TSOP2436, TSOP4830.
Please refer to the document for exact specifications by model.

Features

* Individual IC settings to reach maximum performance
* Immunity against noise (lamps, LCD TV, Wi-Fi)
* Low supply current
* Photo detector and preamplifier in one package
* Supply voltage: 2.0 V to 5.5 V
* Material categorization: for definitions of c

Applications

* Infrared remote control systems DESIGN SUPPORT TOOLS
* 3D models
* Window size calculator BLOCK DIAGRAM 30 kΩ Input AGC Band pass Demodulator PIN 16833-22 Control circuit VS OUT GND Rev. 2.3, 16-Aug-2022 1 Document Number: 82459 THIS DOCUMENT IS SUBJECT TO CHA
