TSOP2440

IR Receiver

TSOP2440 Features

* Individual IC settings to reach maximum performance

* Immunity against noise (lamps, LCD TV, Wi-Fi)

* Low supply current

* Photo detector and preamplifier in one package

* Supply voltage: 2.0 V to 5.5 V

* Material categorization: for definitions of c

TSOP2440 General Description

This IR receiver series is optimized for long burst remote control systems in different environments. The customer can chose between different IC settings (AGC variants), to find the optimum solution for his application. The higher the AGC, the better noise is suppressed, but the lower the code comp.

TSOP2440 Datasheet (215.80 KB)

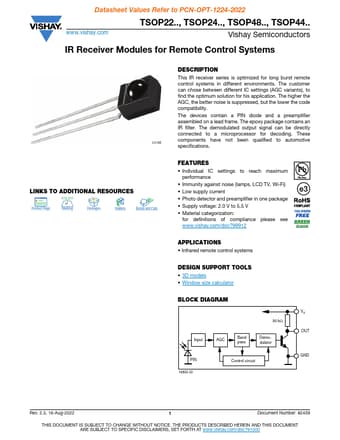

Preview of TSOP2440 PDF

Datasheet Details

Part number:

TSOP2440

Manufacturer:

Vishay ↗

File Size:

215.80 KB

Description:

Ir receiver.
Datasheet Values Refer to PCN-OPT-1224-2022 www.vishay.com TSOP22.., TSOP24.., TSOP48.., TSOP44.. Vishay Semiconductors IR Receiver Modules for Rem.
