TSOP75233W, TSOP75230W Datasheet - Vishay

TSOP75233W IR Receiver

The TSOP75W series are miniaturized SMD IR receiver modules for infrared remote control systems. Two PIN diodes and a preamplifier are assembled on a leadframe, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. The TSOP.

TSOP75233W Features

* Very low supply current

* Photo detector and preamplifier in one package

* Internal filter for PCM frequency

* Supply voltage: 2.5 V to 5.5 V

* Improved immunity against ambient light

* Capable of side or top view

* Low profile 2.35 mm

TSOP75230W-Vishay.pdf

This datasheet PDF includes multiple part numbers: TSOP75233W, TSOP75230W. Please refer to the document for exact specifications by model.

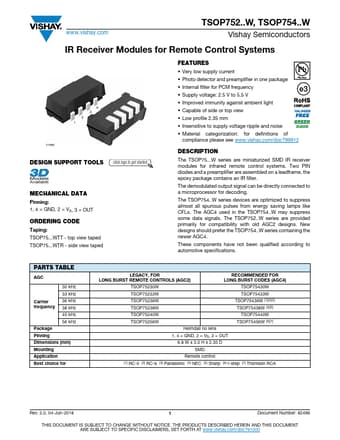

TSOP75233W Datasheet Preview Page 2 TSOP75233W Datasheet Preview Page 3

Datasheet Details

Part number:

TSOP75233W, TSOP75230W

Manufacturer:

Vishay ↗

File Size:

352.83 KB

Description:

Ir receiver.

Note:

This datasheet PDF includes multiple part numbers: TSOP75233W, TSOP75230W.
Please refer to the document for exact specifications by model.
