TSOP75236W

IR Receiver

Vishay

TSOP75236W Features

* Very low supply current

* Photo detector and preamplifier in one package

* Internal filter for PCM frequency

* Supply voltage: 2.5 V to 5.5 V

* Improved immunity against ambient light

* Capable of side or top view

* Low profile 2.35 mm

TSOP75236W General Description

The TSOP75W series are miniaturized SMD IR receiver modules for infrared remote control systems. Two PIN diodes and a preamplifier are assembled on a leadframe, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. The TSOP.

TSOP75236W Datasheet (352.83 KB)

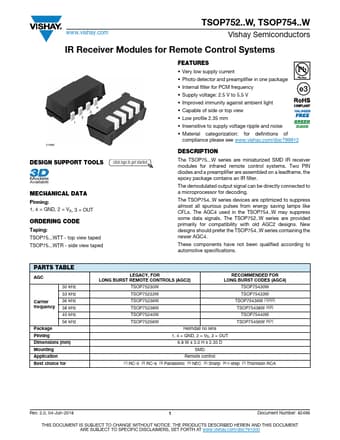

TSOP75236W Datasheet Preview — Preview of TSOP75236W PDF

Datasheet Details

Part number:

TSOP75236W

Manufacturer:

Vishay ↗

File Size:

352.83 KB

Description:

Ir receiver.
www.vishay.com TSOP752..W, TSOP754..W Vishay Semiconductors IR Receiver Modules for Remote Control Systems DESIGN SUPPORT TOOLS click logo to get s.
