TV050B043S4PT, TV050B6P8S4PT Datasheet - Vishay

TV050B043S4PT, TV050B6P8S4PT, Transient Voltage Suppressor

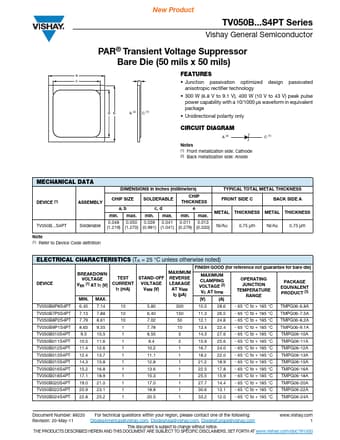

New Product TV050BS4PT Series Vishay General Semiconductor PAR® Transient Voltage Suppressor Bare Die (50 mils x 50 mils) a ce db A (2) C (1) FE.

TV050B6P8S4PT-Vishay.pdf

TV050B043S4PT Datasheet Preview — This datasheet PDF includes multiple part numbers: TV050B043S4PT, TV050B6P8S4PT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TV050B043S4PT, TV050B6P8S4PT

Manufacturer:

Vishay ↗

File Size:

80.23 KB

Description:

Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: TV050B043S4PT, TV050B6P8S4PT.
Please refer to the document for exact specifications by model.

Features

* Junction passivation optimized design passivated anisotropic rectifier technology
* 300 W (6.8 V to 9.1 V), 400 W (10 V to 43 V) peak pulse power capability with a 10/1000 μs waveform in equivalent package
* Unidirectional polarity only CIRCUIT DIAGRAM A (2) Notes (1) Fron
