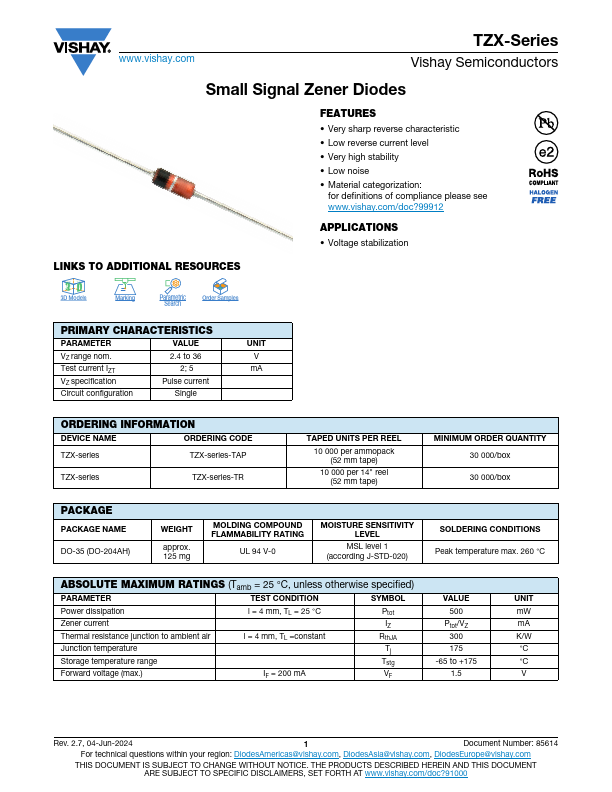

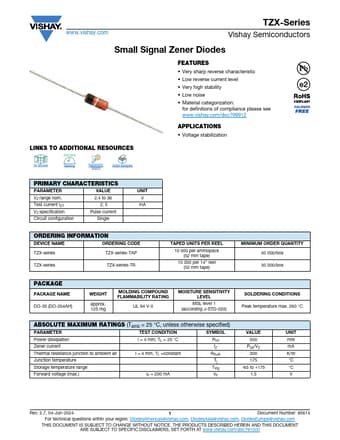

TZX2V4B
TZX2V4B is Small Signal Zener Diodes manufactured by Vishay.
- Part of the TZX2V4A comparator family.
- Part of the TZX2V4A comparator family.
FEATURES
- Very sharp reverse characteristic
- Low reverse current level
- Very high stability
- Low noise
- Material categorization: for definitions of pliance please see .vishay./doc?99912
APPLICATIONS
- Voltage stabilization
LINKS TO ADDITIONAL RESOURCES
3D 3D
3D Models
Marking
Parametric Search
Order Samples
PRIMARY CHARACTERISTICS
PARAMETER
VALUE
VZ range nom. Test current IZT VZ specification Circuit configuration
2.4 to 36 2; 5
Pulse current Single
UNIT V m A
ORDERING INFORMATION
DEVICE NAME
ORDERING CODE
TZX-series
TZX-series-TAP
TZX-series
TZX-series-TR
TAPED UNITS PER REEL
10 000 per ammopack (52 mm tape)
10 000 per 14" reel (52 mm tape)
MINIMUM ORDER QUANTITY 30 000/box 30 000/box
PACKAGE
PACKAGE NAME DO-35 (DO-204AH)
WEIGHT approx. 125 mg
MOLDING POUND FLAMMABILITY RATING
UL 94 V-0
MOISTURE SENSITIVITY LEVEL
MSL level 1 (according J-STD-020)
SOLDERING CONDITIONS Peak temperature max. 260...
