US1D - Surface Mount Ultrafast Rectifier

Product Overview

Vishay

📥 Download Datasheet

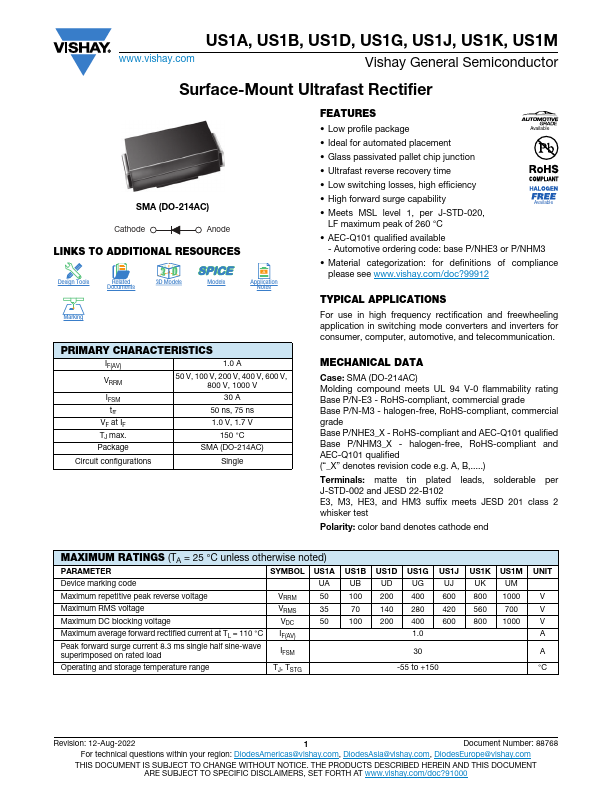

US1D Surface Mount Ultrafast Rectifier by Vishay - Datasheet Preview — Datasheet preview – US1D

Datasheet Details

Part number	US1D
Manufacturer	Vishay
File Size	112.06 KB
Description	Surface Mount Ultrafast Rectifier
Datasheet	US1D Datasheet
Note	This datasheet PDF includes multiple part numbers: US1D, US1A. Please refer to the document for exact specifications by model.

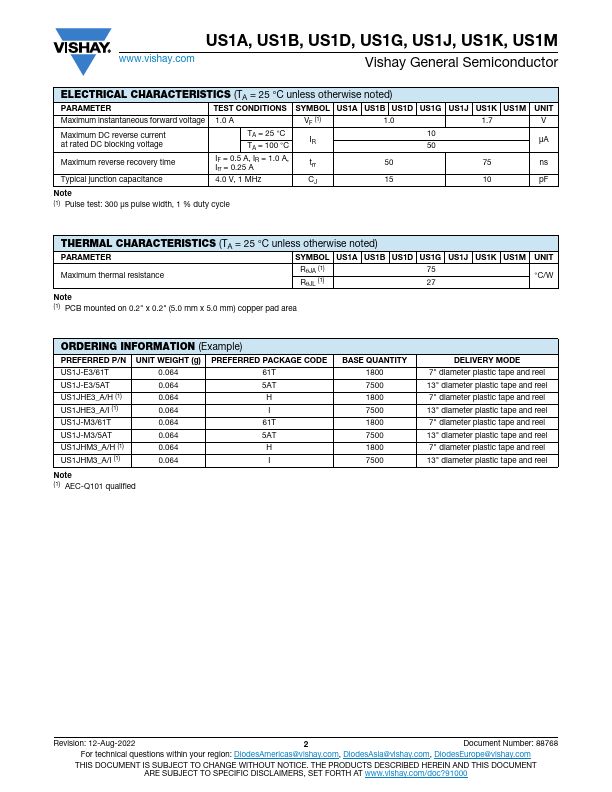

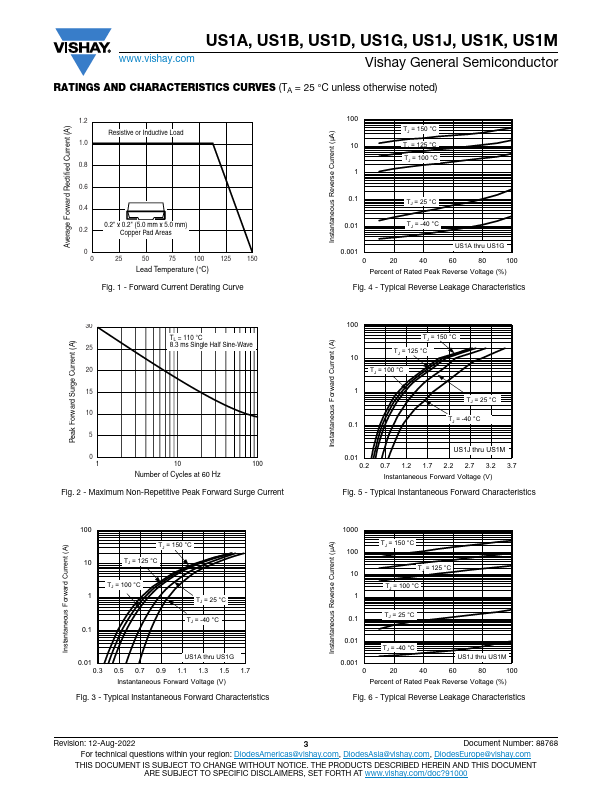

Additional preview pages of the US1D datasheet.

Product details

Features

Low profile package Available.
Ideal for automated placement.
Glass passivated pallet chip junction.
Ultrafast reverse recovery time.
Low switching losses, high efficiency.
High forward surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Available.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3.
Material categorization: for definitions of complianc.
