US1G, US1A Surface Mount Ultrafast Rectifier

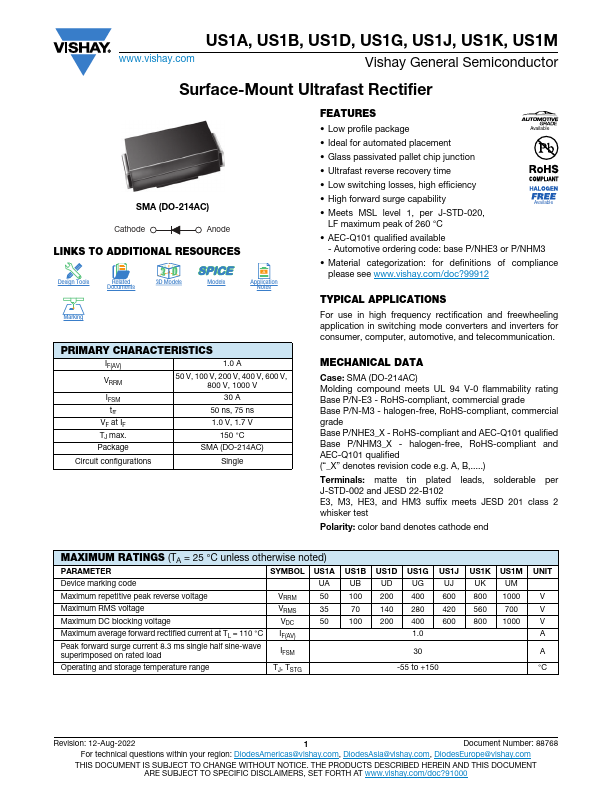

📥 Download Datasheet  Datasheet Preview Page 1

Description

US1A, US1B, US1D, US1G, US1J, US1K, US1M www.vishay.com Vishay General Semiconductor Surface-Mount Ultrafast Rectifier SMA (DO-214AC) Cathode An.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: US1G, US1A. Please refer to the document for exact specifications by model.

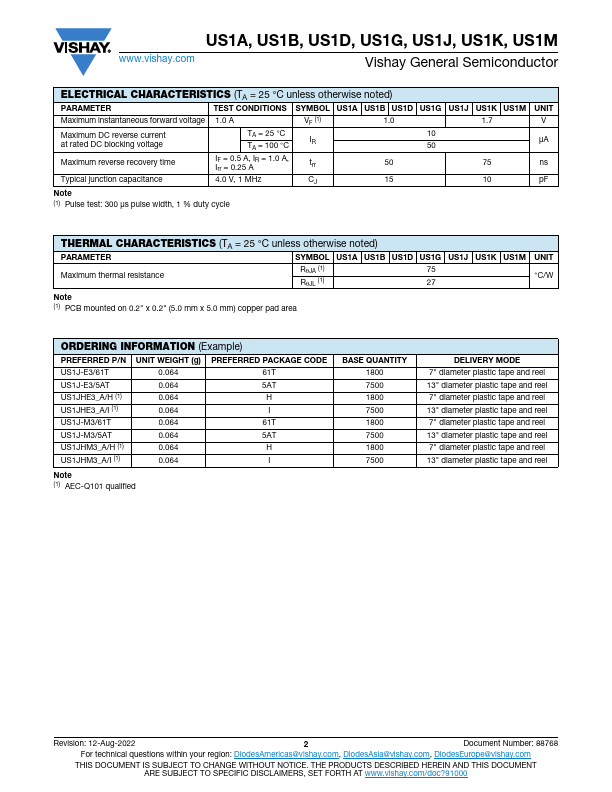

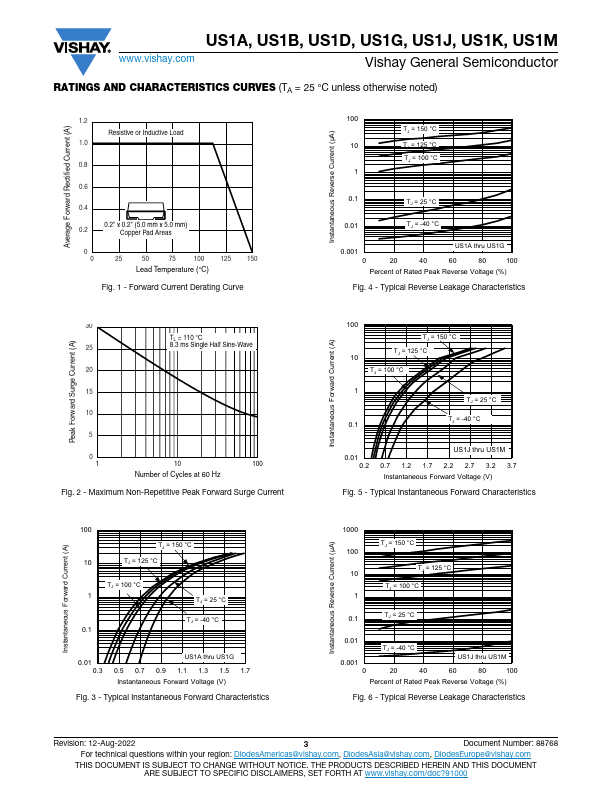

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
US1G, US1A
Manufacturer
Vishay ↗
File Size
112.06 KB
Datasheet
US1A-Vishay.pdf
Description
Surface Mount Ultrafast Rectifier
Note
This datasheet PDF includes multiple part numbers: US1G, US1A.
Please refer to the document for exact specifications by model.

Features

* Low profile package Available
* Ideal for automated placement
* Glass passivated pallet chip junction
* Ultrafast reverse recovery time
* Low switching losses, high efficiency
* High forward surge capability
* Meets MSL level 1, per J-

Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive, and telecommunication. MECHANICAL DATA Case: SMA (DO-214AC) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commerci
