V15P10 Trench MOS Barrier Schottky Rectifier

V15P10 Description

www.vishay.com V15P10 Vishay General Semiconductor High Current Density Surface Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.

V15P10 Features

* Very low profile - typical height of 1.1 mm Available
* Ideal for automated placement
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak

V15P10 Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. PRIMARY CHARACTERISTICS IF(AV) 15 A VRRM 100 V IFSM 220 A VF at IF = 15 A (125 °C) 0.60 V TJ max. Package 150 °C SMPC (TO-277A) Circuit configuration Single MECHANICAL

📥 Download Datasheet

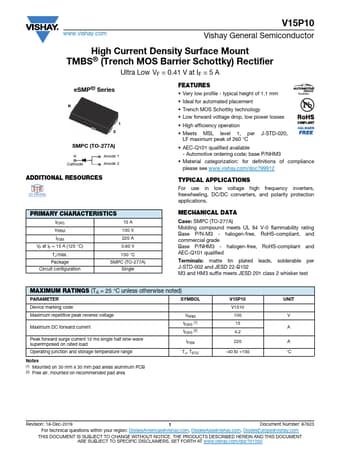

Preview of V15P10 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V15P10
Manufacturer
Vishay ↗
File Size
100.37 KB
Datasheet
V15P10-Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
