V15P45S SMD Photovoltaic Solar Cell Protection Schottky Rectifiers

V15P45S Description

www.DataSheet.co.kr New Product V15P45S Vishay General Semiconductor SMD Photovoltaic Solar Cell Protection Schottky Rectifiers Ultra Low VF = 0.31.

V15P45S Features

* TMBS® K eSMP® Series
* Very low profile - typical height of 1.1 mm
* Ideal for automated placement
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximu

V15P45S Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 15 A TOP max. 15 A 45 V 210 A 0.42 V 150 °C MECHANICAL DATA Case: TO-277A (SMPC) Molding compound meets UL 94 V-0 flammability rat

📥 Download Datasheet

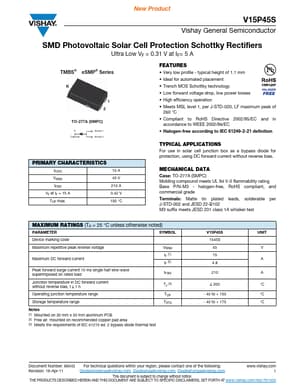

Preview of V15P45S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V15P45S
Manufacturer
Vishay ↗
File Size
149.93 KB
Datasheet
V15P45S_Vishay.pdf
Description
SMD Photovoltaic Solar Cell Protection Schottky Rectifiers
