VEMD2003X01 - Silicon PIN Photodiode

Product Overview

Vishay

📥 Download Datasheet

VEMD2003X01 Silicon PIN Photodiode by Vishay - Datasheet Preview — Datasheet preview – VEMD2003X01

Datasheet Details

Part number	VEMD2003X01
Manufacturer	Vishay
File Size	197.86 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD2003X01 Datasheet

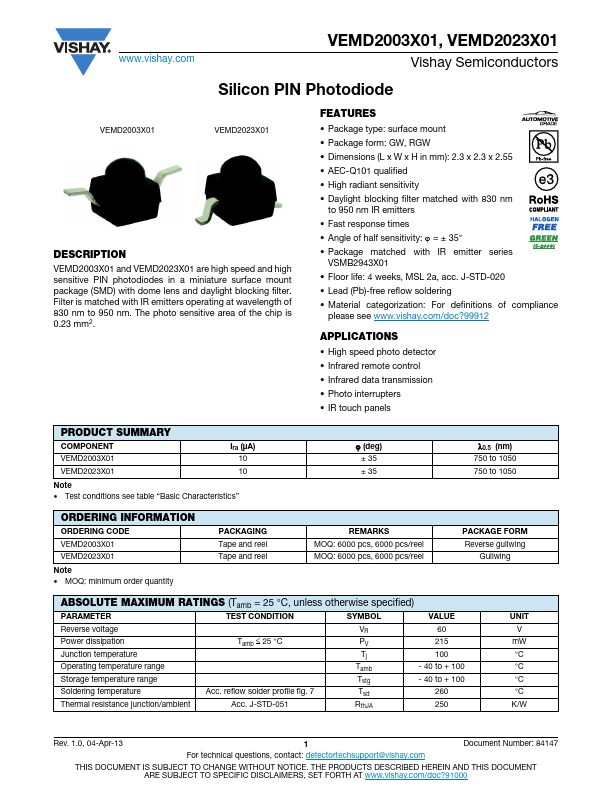

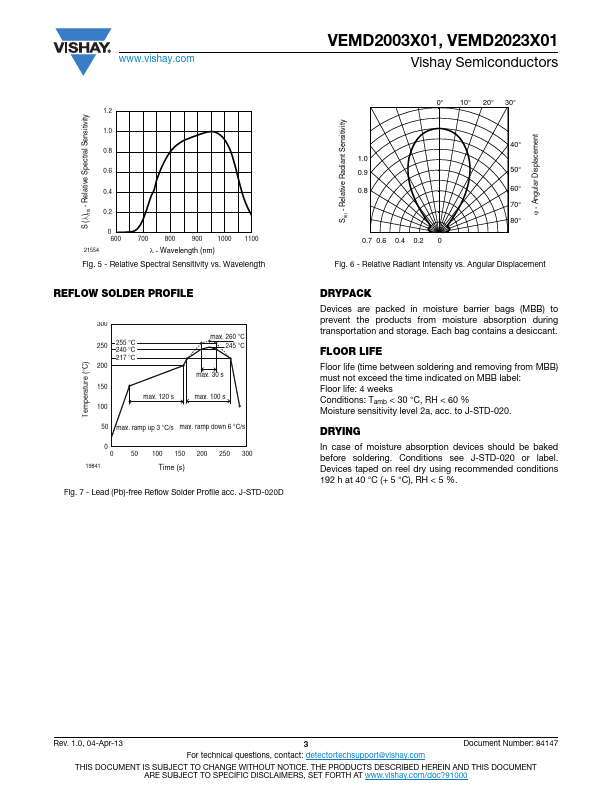

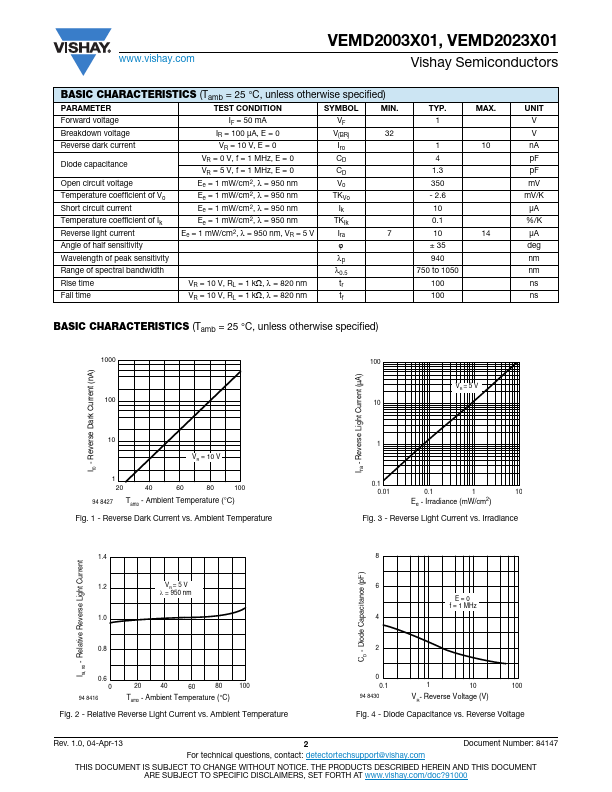

Additional preview pages of the VEMD2003X01 datasheet.

Product details

Description

VEMD2003X01 and VEMD2023X01 are high speed and high sensitive PIN photodiodes in a miniature surface mount package (SMD) with dome lens and daylight blocking filter.

Features

Package type: surface mount.
Package form: GW, RGW.
Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.55.
AEC-Q101 qualified.
High radiant sensitivity.
Daylight blocking filter matched with 830 nm to 950 nm IR emitters.
Fast response times.
Angle of half sensitivity:  = ± 35°.
Package matched with IR emitter series VSMB2943X01.
Floor life: 4 weeks, MSL 2a, acc. J-STD-020.
Lead (Pb)-free reflow solderin.
