VEMD2023X01, VEMD2003X01 - Silicon PIN Photodiode

VEMD2023X01 Description

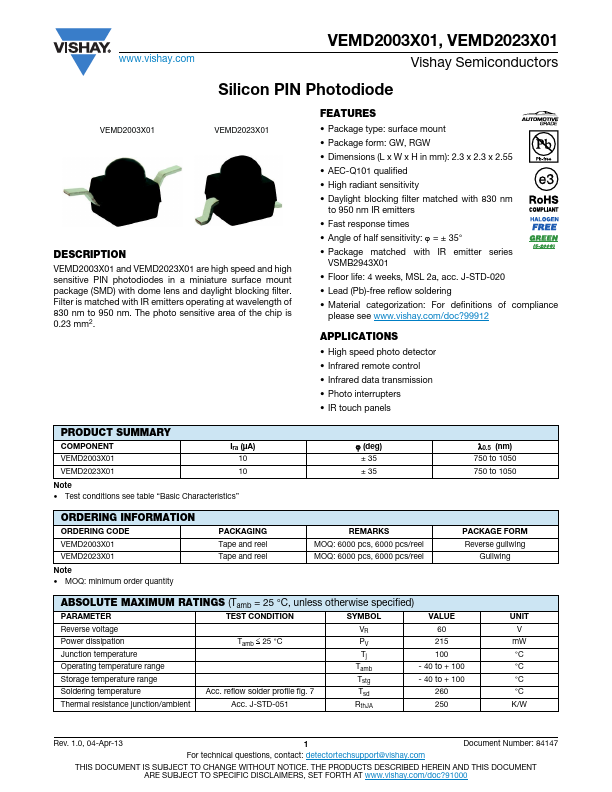

www.vishay.com VEMD2003X01, VEMD2023X01 Vishay Semiconductors Silicon PIN Photodiode VEMD2003X01 VEMD2023X01 .
VEMD2003X01 and VEMD2023X01 are high speed and high sensitive PIN photodiodes in a miniature surface mount package (SMD) with dome lens and daylight b.

VEMD2023X01 Features

* Package type: surface mount
* Package form: GW, RGW
* Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.55
* AEC-Q101 qualified
* High radiant sensitivity
* Daylight blocking filter matched with 830 nm to 950 nm IR emitters
* Fast response times

VEMD2023X01 Applications

* High speed photo detector
* Infrared remote control
* Infrared data transmission
* Photo interrupters
* IR touch panels PRODUCT SUMMARY COMPONENT VEMD2003X01 Ira (μA) 10 VEMD2023X01 10 Note
* Test conditions see table “Basic Characteristics” 

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VEMD2023X01, VEMD2003X01. Please refer to the document for exact specifications by model.

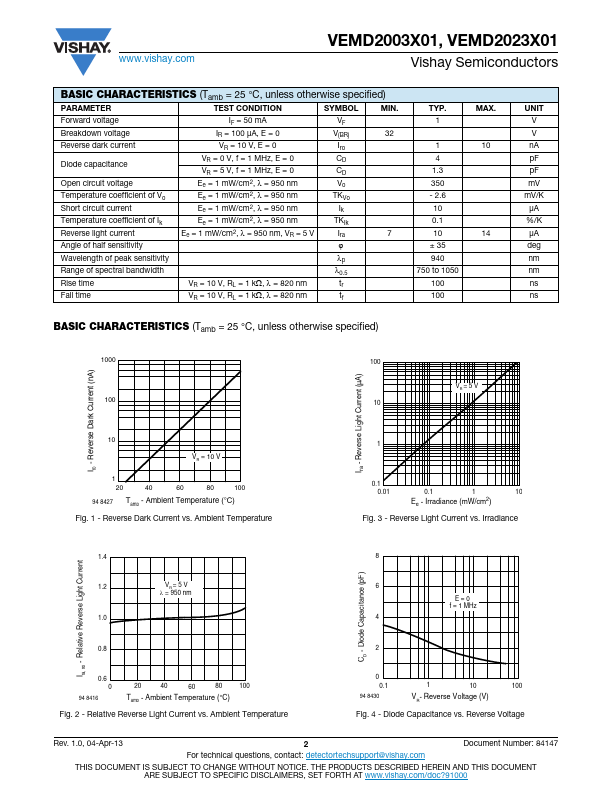

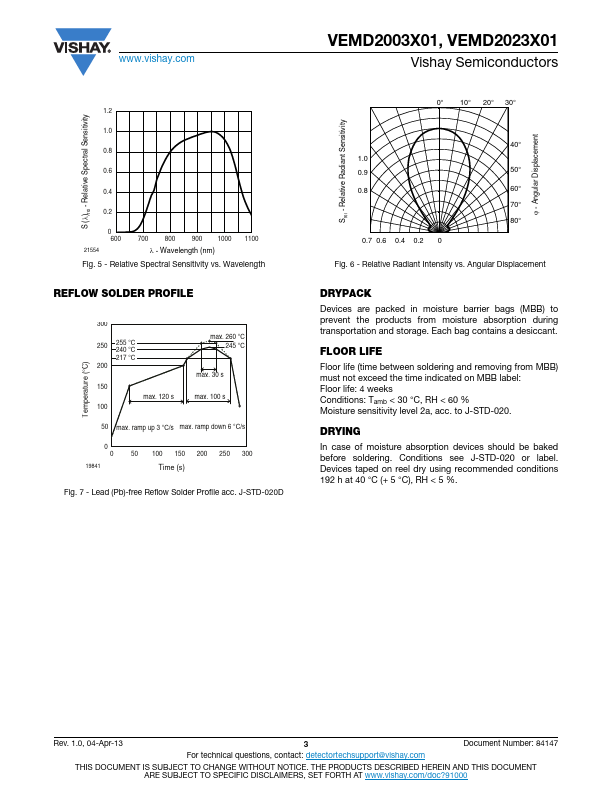

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VEMD2023X01, VEMD2003X01
Manufacturer
Vishay ↗
File Size
197.86 KB
Datasheet
VEMD2003X01-Vishay.pdf
Description
Silicon PIN Photodiode
Note
This datasheet PDF includes multiple part numbers: VEMD2023X01, VEMD2003X01.
Please refer to the document for exact specifications by model.
