VEMD2520X01 Silicon PIN Photodiode

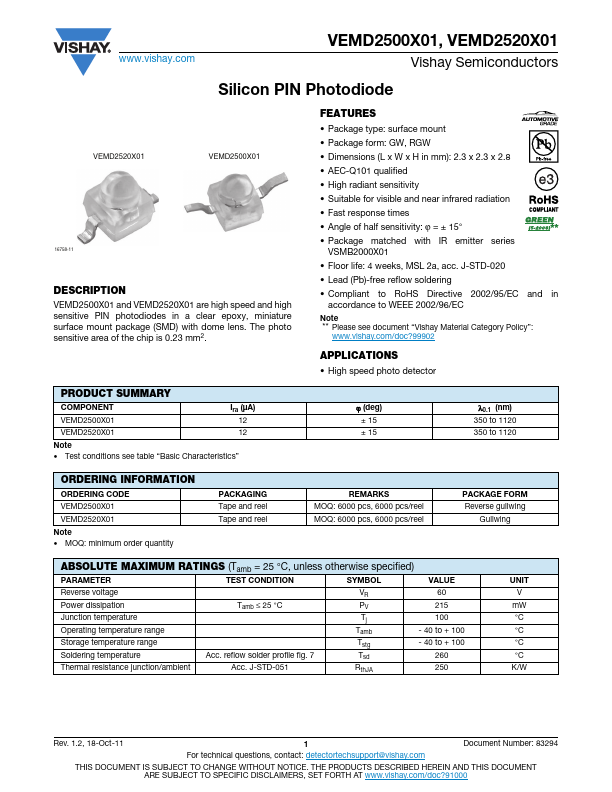

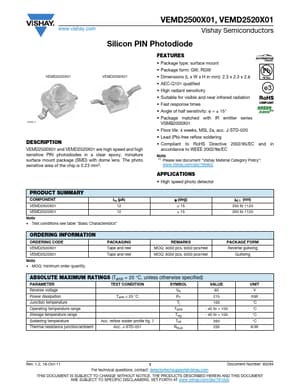

www.vishay.com VEMD2500X01, VEMD2520X01 Vishay Semiconductors Silicon PIN Photodiode VEMD2520X01 VEMD2500X01 16758-11 .
VEMD2500X01 and VEMD2520X01 are high speed and high sensitive PIN photodiodes in a clear epoxy, miniature surface mount package (SMD) with dome lens.

VEMD2520X01_Vishay.pdf

VEMD2520X01 Datasheet Preview — Preview of VEMD2520X01 PDF

Datasheet Details

Part number:

VEMD2520X01

Manufacturer:

Vishay ↗

File Size:

140.54 KB

Description:

Silicon PIN Photodiode

Features

* Package type: surface mount
* Package form: GW, RGW
* Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8
* AEC-Q101 qualified
* High radiant sensitivity
* Suitable for visible and near infrared radiation
* Fast response times
* Angle of ha

Applications

* High speed photo detector PRODUCT SUMMARY COMPONENT VEMD2500X01 Ira (μA) 12 VEMD2520X01 12 Note
* Test conditions see table “Basic Characteristics” ϕ (deg) ± 15 ± 15 λ0.1 (nm) 350 to 1120 350 to 1120 ORDERING INFORMATION ORDERING CODE VEMD2500X01 VEMD2520X01 Note
