VEMD5060X01 - Silicon PIN Photodiode

Vishay

📥 Download Datasheet

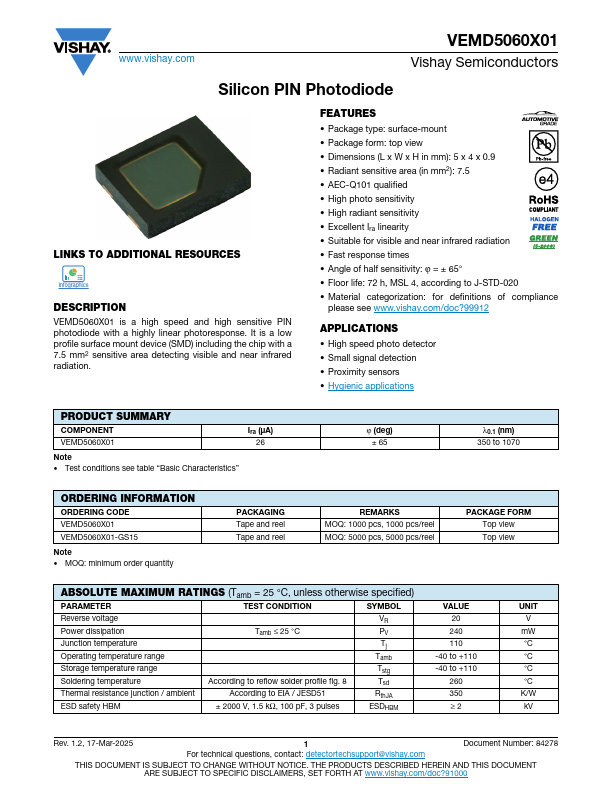

VEMD5060X01 Datasheet Preview — Preview of VEMD5060X01 PDF

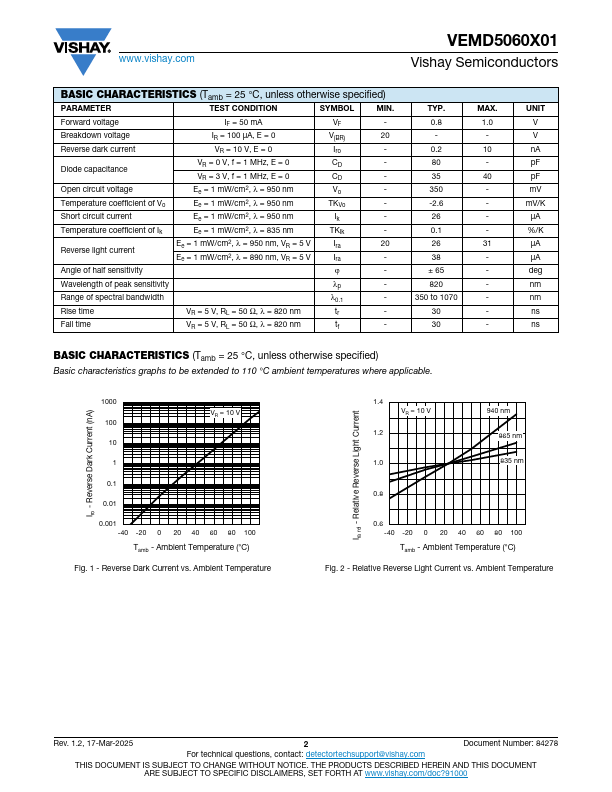

datasheet Preview Page 2

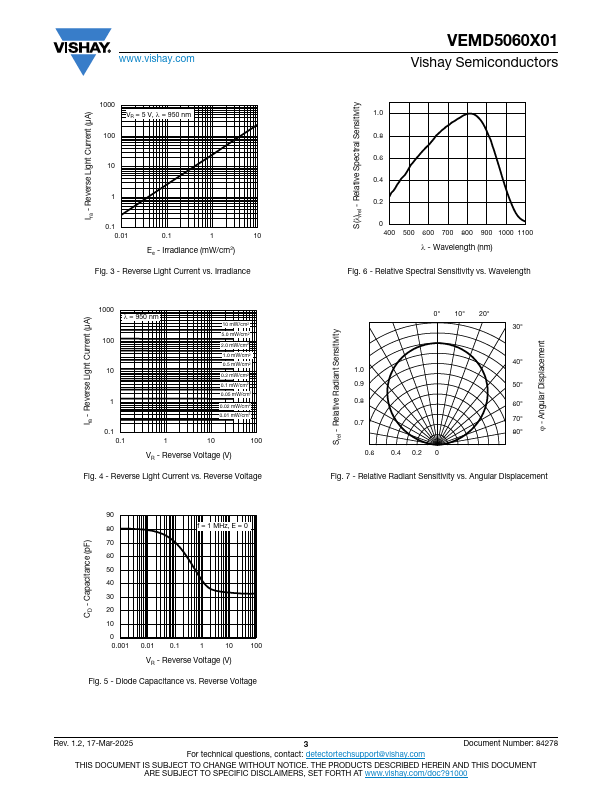

datasheet Preview Page 3

Datasheet Details

Part number	VEMD5060X01
Manufacturer	Vishay
File Size	199.28 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD5060X01-Vishay.pdf

VEMD5060X01 Product details

Description

VEMD5060X01 is a high speed and high sensitive PIN photodiode with a highly linear photoresponse.

Features

Package type: surface-mount.
Package form: top view.
Dimensions (L x W x H in mm): 5 x 4 x 0.9.
Radiant sensitive area (in mm2): 7.5.
AEC-Q101 qualified.
High photo sensitivity.
High radiant sensitivity.
Excellent Ira linearity.
Suitable for visible and near infrared radiation.
Fast response times.
Angle of half sensitivity: ϕ = ± 65°.
Floor life: 72 h, MSL 4, according to J-STD-020.
