VEMD5080X01 Datasheet, Photodiode, Vishay

VEMD5080X01 Features

  • Photodiode
  • Package type: surface-mount
  • Package form: top view
  • Dimensions (L x W x H in mm): 5 x 4 x 0.9
  • Radiant sensitive area (in mm2): 7.5
  • AEC-Q

PDF File Details

Part number:

VEMD5080X01

Manufacturer:

Vishay ↗

File Size:

179.29kb

Download:

📄 Datasheet

Description:

Silicon pin photodiode. VEMD5080X01 is a high speed and high sensitive PIN photodiode with enhanced sensitivity for visible light. It is a low profile surfac

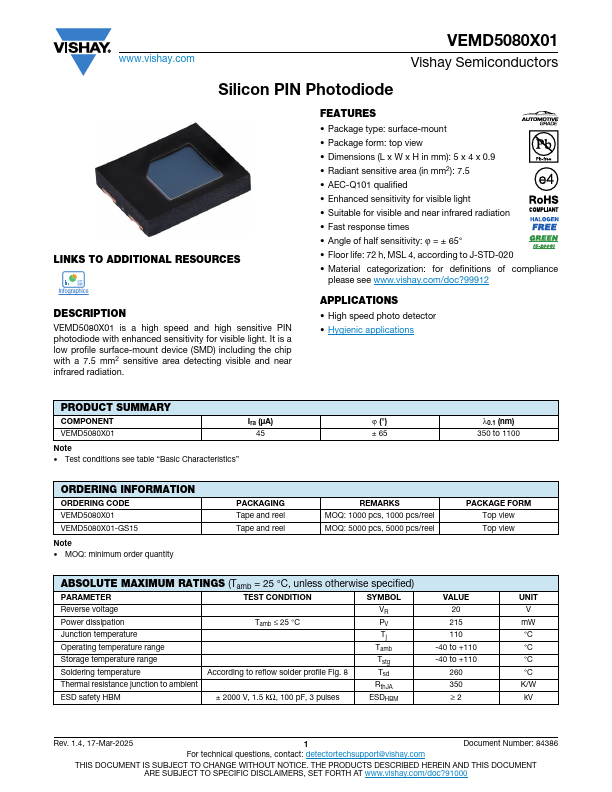

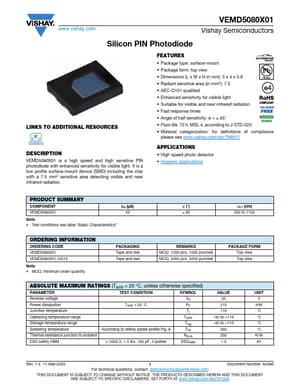

Datasheet Preview: VEMD5080X01 📥 Download PDF (179.29kb)

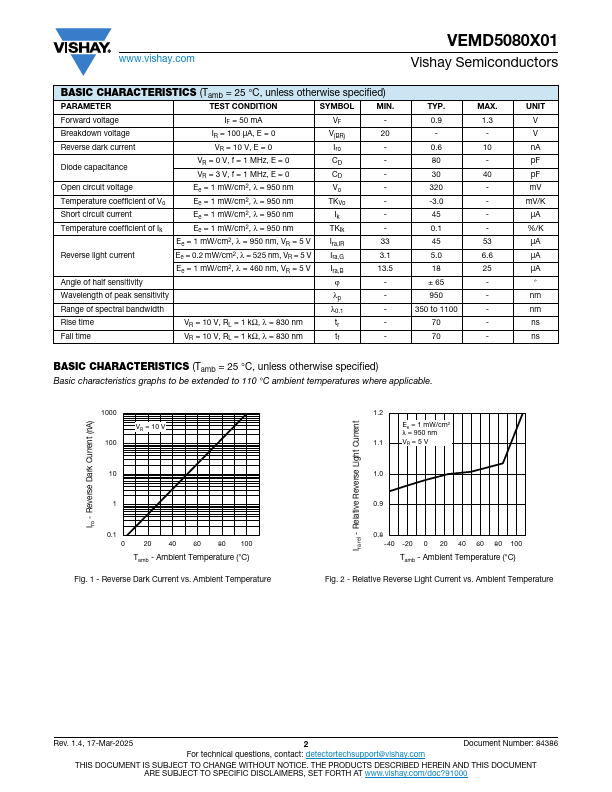

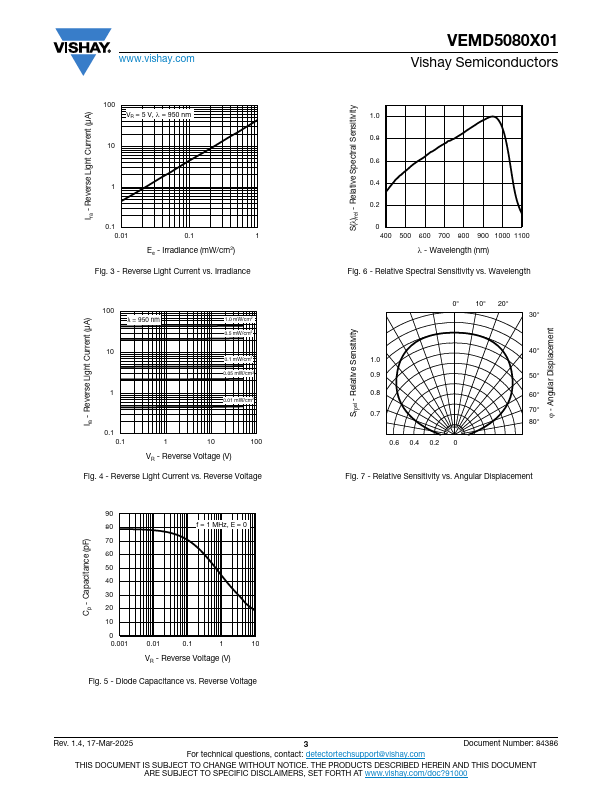

Page 2 of VEMD5080X01 Page 3 of VEMD5080X01

VEMD5080X01 Application

  • Applications
  • High speed photo detector PRODUCT SUMMARY COMPONENT VEMD5080X01 Ira (μA) 45 Note
  • Test conditions see table “Basi
