VI20100C Datasheet - Vishay

VI20100C, Dual High-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V20100C, VF20100C, VB20100C, VI20100C Vishay General Semiconductor Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low .

VI20100C_Vishay.pdf

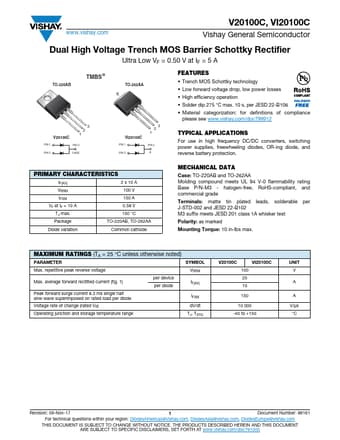

VI20100C Datasheet Preview — Preview of VI20100C PDF

Datasheet Details

Part number:

VI20100C

Manufacturer:

Vishay ↗

File Size:

136.32 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for

Applications

* For use in high frequency converters, switching power supplies, freewheeling diodes, OR-ing diode, DC/DC converters and reverse battery protection. 2 1 VB20100C PIN 1 K PIN 2 HEATSINK VI20100C PIN 1 3 2 1 PIN 2 PIN 3 K PRIMARY CHARACTERISTICS Package TO-220AB, ITO-220AB, TO-263AB, TO-26
