VI30120C, Dual High-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V30120C, VI30120C Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.50 V at IF = .

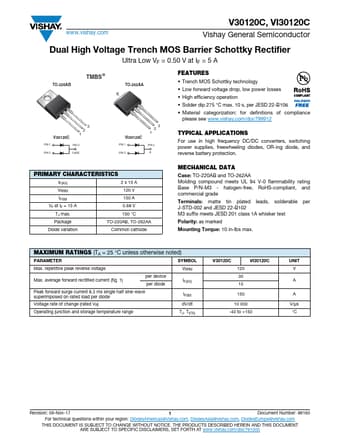

datasheet Preview Page 1 from Datasheet4u.com

VI30120C_Vishay.pdf

VI30120C Datasheet Preview — Preview of VI30120C PDF

Datasheet Details

Part number:

VI30120C

Manufacturer:

Vishay ↗

File Size:

130.72 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 TYPICAL APPLI

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM 2 x 15 A 120 V 150 A VF at IF = 15 A 0.68 V TJ max. Package 150 °C TO-220AB, TO-262AA Diode variation Common cath
