VI30100C Dual High-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V30100C, VI30100C Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.455 V at IF =.

VI30100C_Vishay.pdf

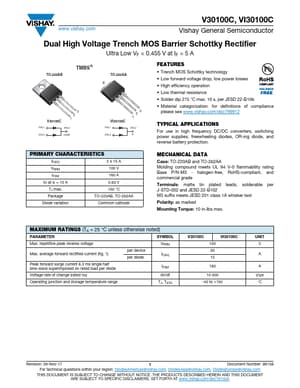

VI30100C Datasheet Preview — Preview of VI30100C PDF

Datasheet Details

Part number:

VI30100C

Manufacturer:

Vishay ↗

File Size:

133.72 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Low thermal resistance
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance please see www. v

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) 2 x 15 A VRRM IFSM 100 V 160 A VF at IF = 15 A 0.63 V TJ max. 150 °C Package TO-220AB, TO-262AA Diode variation Common
