VI30100SG - High-Voltage Trench MOS Barrier Schottky Rectifier

Vishay

📥 Download Datasheet

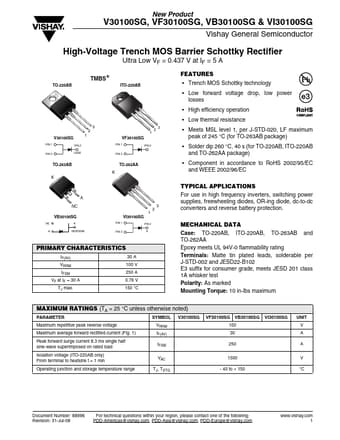

VI30100SG Datasheet Preview — Preview of VI30100SG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VI30100SG
Manufacturer: Vishay ↗
File Size: 226.78 KB
Datasheet: VI30100SG_Vishay.pdf
Description: High-Voltage Trench MOS Barrier Schottky Rectifier

VI30100SG Product details

Features

Trench MOS Schottky technology.
Low forward voltage drop, low power losses.
High efficiency operation.
Low thermal resistance 2 V30100SG PIN 1 PIN 2 CASE 3 1 VF30100SG PIN 1 PIN 2 2 3 1.
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
Solder dip 260 °C, 40 s (for TO-220AB, ITO-220AB and TO-262AA package).
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
