VLDY1235R, VLDS1235G - Dome Lens SMD LED

Vishay

The VLDY1235R by Vishay is a Dome Lens SMD LED. Below is the official datasheet preview.

📥 Download Datasheet

VLDY1235R Dome Lens SMD LED by Vishay - Datasheet Preview — Official preview page of the **VLDY1235R** Dome Lens SMD LED datasheet (Vishay).

Datasheet Details

Part number	VLDY1235R, VLDS1235G
Manufacturer	Vishay
File Size	234.86 KB
Description	Dome Lens SMD LED
Datasheet	VLDS1235G-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VLDY1235R, VLDS1235G. Please refer to the document for exact specifications by model.

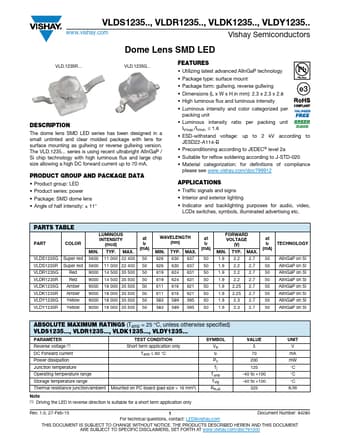

Additional preview pages of the VLDY1235R datasheet.

VLDY1235R Product details

Description

The dome lens SMD LED series has been designed in a small untinted and clear molded package with lens for surface mounting as gullwing or reverse gullwing version. Product group: LED Product series: power Package: SMD dome lens Angle of half intensity: ± 11°

Features

Utilizing latest advanced AlInGaP technology.
Package type: surface mount.
Package form: gullwing, reverse gullwing.
Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8.
High luminous flux and luminous intensity.
Luminous intensity and color categorized per packing unit.
Luminous intensity ratio per packing IVmax. /IVmin. ≤ 1.6.
ESD-wi.
