VLMB31K2L2-GS18, VLMB31J2L2-GS08 Datasheet - Vishay

VLMB31K2L2-GS18 Standard SMD LED PLCC-2

The package of the VLMB31..-series is the PLCC-2. It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy. PRODUCT GROUP AND PACKAGE DATA * Product group: LED * Package: SMD PLCC-2 * Product series:.

VLMB31K2L2-GS18 Features

* SMD LED with exceptional brightness

* Luminous intensity categorized

* Compatible with automatic placement equipment

* EIA and ICE standard package

* Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020

VLMB31J2L2-GS08-Vishay.pdf

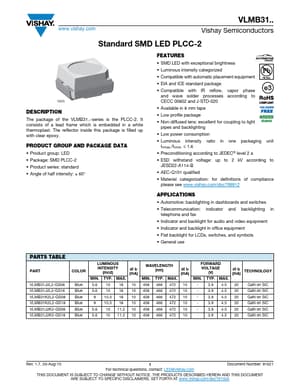

VLMB31K2L2-GS18 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMB31K2L2-GS18, VLMB31J2L2-GS08. Please refer to the document for exact specifications by model.

VLMB31K2L2-GS18 Datasheet Preview Page 2

VLMB31K2L2-GS18 Datasheet Preview Page 3

Datasheet Details

Part number:

VLMB31K2L2-GS18, VLMB31J2L2-GS08

Manufacturer:

Vishay ↗

File Size:

169.47 KB

Description:

Standard smd led plcc-2.

Note:

This datasheet PDF includes multiple part numbers: VLMB31K2L2-GS18, VLMB31J2L2-GS08.
Please refer to the document for exact specifications by model.
