VLME31Q2T1-35-GS08

Standard SMD LED PLCC-2

VLME31Q2T1-35-GS08 Features

* SMD LED with exceptional brightness

* Luminous intensity categorized

* Compatible with automatic placement equipment

* EIA and ICE standard package

* Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020

VLME31Q2T1-35-GS08 General Description

This device has been designed to meet the increasing demand for AlInGaP technology. The package of the VLME31-series is the PLCC-2. It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy. PRODUCT GROUP AND PACKAGE DATA

VLME31Q2T1-35-GS08 Datasheet (172.64 KB)

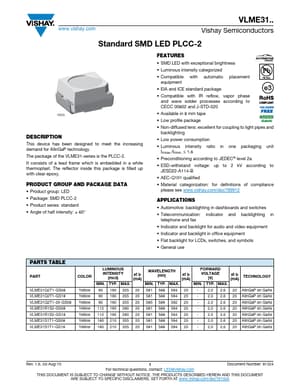

Preview of VLME31Q2T1-35-GS08 PDF

Datasheet Details

Part number:

VLME31Q2T1-35-GS08

Manufacturer:

Vishay ↗

File Size:

172.64 KB

Description:

Standard smd led plcc-2.
