VLME31R1S2-GS08, VLME31Q2T1-GS08 Datasheet - Vishay

VLME31R1S2-GS08 Standard SMD LED PLCC-2

This device has been designed to meet the increasing demand for AlInGaP technology. The package of the VLME31-series is the PLCC-2. It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy. PRODUCT GROUP AND PACKAGE DATA

VLME31R1S2-GS08 Features

* SMD LED with exceptional brightness

* Luminous intensity categorized

* Compatible with automatic placement equipment

* EIA and ICE standard package

* Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020

VLME31Q2T1-GS08-Vishay.pdf

This datasheet PDF includes multiple part numbers: VLME31R1S2-GS08, VLME31Q2T1-GS08. Please refer to the document for exact specifications by model.

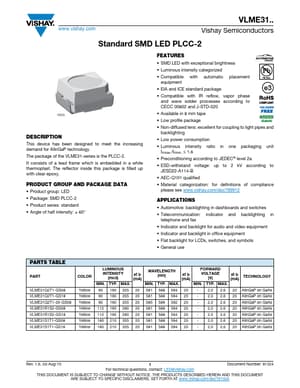

VLME31R1S2-GS08 Datasheet Preview Page 2 VLME31R1S2-GS08 Datasheet Preview Page 3

Datasheet Details

Part number:

VLME31R1S2-GS08, VLME31Q2T1-GS08

Manufacturer:

Vishay ↗

File Size:

172.64 KB

Description:

Standard smd led plcc-2.

Note:

This datasheet PDF includes multiple part numbers: VLME31R1S2-GS08, VLME31Q2T1-GS08.
Please refer to the document for exact specifications by model.
