VLMK23Q2S1-GS08, VLMK23P2R1-GS08 - Power Mini SMD LED

Vishay

The VLMK23Q2S1-GS08 by Vishay is a Power Mini SMD LED. Below is the official datasheet preview.

📥 Download Datasheet

VLMK23Q2S1-GS08 Power Mini SMD LED by Vishay - Datasheet Preview — Official preview page of the VLMK23Q2S1-GS08 Power Mini SMD LED datasheet (Vishay).

Datasheet Details

Part number	VLMK23Q2S1-GS08, VLMK23P2R1-GS08
Manufacturer	Vishay
File Size	329.25 KB
Description	Power Mini SMD LED
Datasheet	VLMK23P2R1-GS08-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VLMK23Q2S1-GS08, VLMK23P2R1-GS08. Please refer to the document for exact specifications by model.

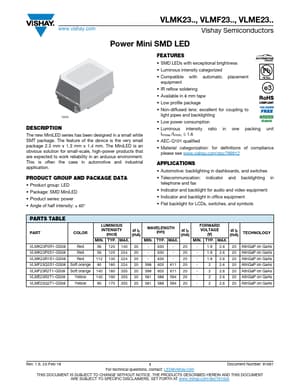

Additional preview pages of the VLMK23Q2S1-GS08 datasheet.

VLMK23Q2S1-GS08 Product details

Description

The new MiniLED series has been designed in a small white SMT package. Product group: LED Package: SMD MiniLED Product series: power Angle of half in

Features

SMD LEDs with exceptional brightness.
Luminous intensity categorized.
Compatible with automatic placement equipment.
IR reflow soldering.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Low power consumption.
Luminous intensity ratio in one packing unit IVmax. /IVmin. ≤ 1.6.
AEC-Q101 qu.
