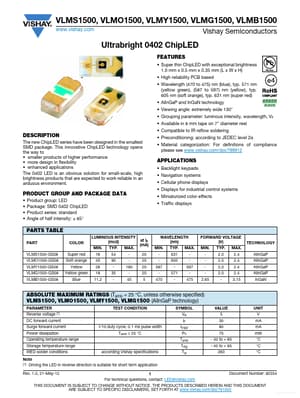

datasheet Preview Page 1 from Datasheet4u.com

VLMY1500, VLMS1500 Ultrabright 0402 ChipLED

VLMS1500, VLMO1500, VLMY1500, VLMG1500, VLMB1500 www.vishay.com Vishay Semiconductors Ultrabright 0402 ChipLED .
The new ChipLED series have been designed in the smallest SMD package. smaller products.

VLMS1500_Vishay.pdf

VLMY1500 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMY1500, VLMS1500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLMY1500, VLMS1500

Manufacturer:

Vishay ↗

File Size:

239.18 KB

Description:

Ultrabright 0402 ChipLED

Note:

This datasheet PDF includes multiple part numbers: VLMY1500, VLMS1500.
Please refer to the document for exact specifications by model.

Features

* Super thin ChipLED with exceptional brightness 1.0 mm x 0.5 mm x 0.35 mm (L x W x H)
* High reliability PCB based
* Wavelength (470 to 475) nm (blue), typ. 571 nm (yellow green), (587 to 597) nm (yellow), typ. 605 nm (soft orange), typ. 631 nm (super red)
* AllnGaP

Applications

* The 0402 LED is an obvious solution for small-scale, high brightness products that are expected to work reliable in an arduous environment. APPLICATIONS
* Backlight keypads
* Navigation systems
* Cellular phone displays
* Displays for industrial control systems
