VLMY322U1V2-GS08

Power SMD LED

VLMY322U1V2-GS08 Features

* 3 cathode pins, 1 anode pin

* Available in 8 mm tape

* High brightness SMD LED

* Luminous intensity and color categorized per packing unit

* Luminous intensity ratio per packing unit IVmax./IVmin. ≤ 1.6

* ESD-withstand voltage: up to 2 kV according t

VLMY322U1V2-GS08 General Description

The VLMS322.., VLMK322.., VLMO322.., and VLMY322.. series are an advanced development in terms of heat dissipation. The leadframe profile of this PLCC-4 SMD package is optimized to reduce the thermal resistance. This allows higher drive current and doubles the light output compared to Vishay’s high .

VLMY322U1V2-GS08 Datasheet (244.27 KB)

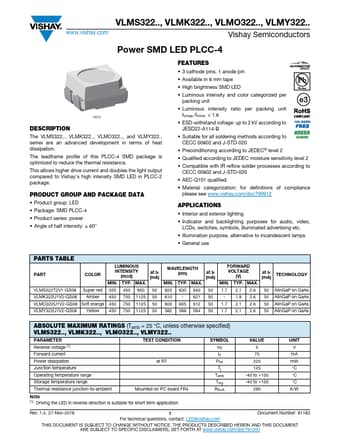

Preview of VLMY322U1V2-GS08 PDF

Datasheet Details

Part number:

VLMY322U1V2-GS08

Manufacturer:

Vishay ↗

File Size:

244.27 KB

Description:

Power smd led.
