VS-10CTQ150PbF Schottky Rectifier

VS-10CTQ150PbF Description

www.vishay.com VS-10CTQ150PbF, VS-10CTQ150-N3 Vishay Semiconductors Schottky Rectifier, 2 x 5 A Base 2 common cathode TO-220AB Anode 2 Anode 1 .
This center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

VS-10CTQ150PbF Features

* 175 °C TJ operation
* Center tap configuration
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and

VS-10CTQ150PbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangular waveform tp = 5 μs sine VF 5 Apk, TJ = 125 °C (per leg) TJ Range VALUES 10 150 620 0.73 - 55 to 175 UNITS A

📥 Download Datasheet

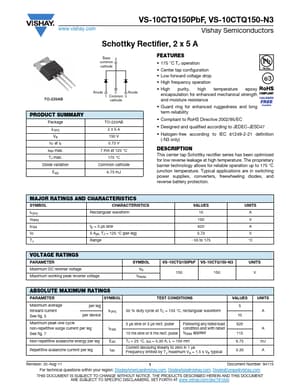

Preview of VS-10CTQ150PbF PDF
