VS-10CTQ150SPbF High Performance Schottky Rectifier

VS-10CTQ150SPbF Description

www.vishay.com VS-10CTQ150SPbF, VS-10CTQ150-1PbF Vishay Semiconductors High Performance Schottky Rectifier, 2 x 5 A VS-10CTQ150SPbF VS-10CTQ150-1P.
This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

VS-10CTQ150SPbF Features

* 175 °C TJ operation
* Center tap configuration
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and

VS-10CTQ150SPbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.   MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 5 Apk, TJ = 125 °C (per leg) Range VALUES 10 150 620 0.73 -55 to +175 UNITS

📥 Download Datasheet

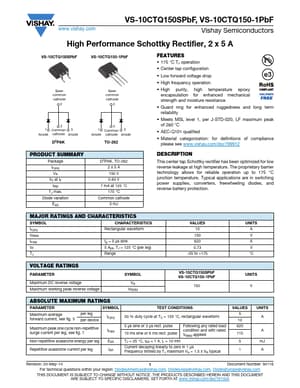

Preview of VS-10CTQ150SPbF PDF
