VS-10ETF02FP-M3, VS-10ETF02FPPbF Datasheet - Vishay

VS-10ETF02FP-M3 Fast Soft Recovery Rectifier Diode

The VS-10ETF0..FP fast soft recovery rectifier series has been optimized for combined short reverse recovery time and low forward voltage drop. The glass passivation ensures stable reliable operation in the most severe temperature and power cycling conditions. MAJOR RATINGS AND CHARACTERISTICS SYM.

VS-10ETF02FP-M3 Features

* 150 °C max. operation junction temperature

* Designed and qualified according to JEDEC-JESD47

* Fully isolated package (VINS = 2500 VRMS)

* UL E78996 approved

* Compliant to RoHS Directive 2002/95/EC

* Halogen-free according to IEC 61249-2-21 definti

VS-10ETF02FPPbF-Vishay.pdf

This datasheet PDF includes multiple part numbers: VS-10ETF02FP-M3, VS-10ETF02FPPbF. Please refer to the document for exact specifications by model.

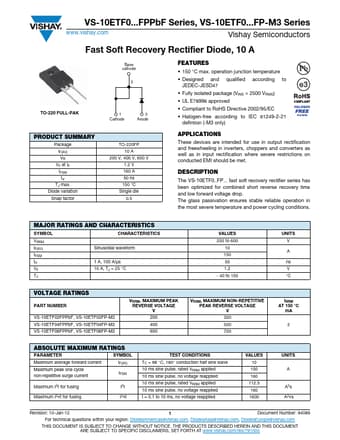

VS-10ETF02FP-M3 Datasheet Preview Page 2 VS-10ETF02FP-M3 Datasheet Preview Page 3

Datasheet Details

Part number:

VS-10ETF02FP-M3, VS-10ETF02FPPbF

Manufacturer:

Vishay ↗

File Size:

227.74 KB

Description:

Fast soft recovery rectifier diode.

Note:

This datasheet PDF includes multiple part numbers: VS-10ETF02FP-M3, VS-10ETF02FPPbF.
Please refer to the document for exact specifications by model.
