VS-10ETF02FPPbF

Fast Soft Recovery Rectifier Diode

VS-10ETF02FPPbF Features

* 150 °C max. operation junction temperature

* Designed and qualified according to JEDEC-JESD47

* Fully isolated package (VINS = 2500 VRMS)

* UL E78996 approved

* Compliant to RoHS Directive 2002/95/EC

* Halogen-free according to IEC 61249-2-21 definti

VS-10ETF02FPPbF General Description

The VS-10ETF0..FP fast soft recovery rectifier series has been optimized for combined short reverse recovery time and low forward voltage drop. The glass passivation ensures stable reliable operation in the most severe temperature and power cycling conditions. MAJOR RATINGS AND CHARACTERISTICS SYM.

VS-10ETF02FPPbF Datasheet (227.74 KB)

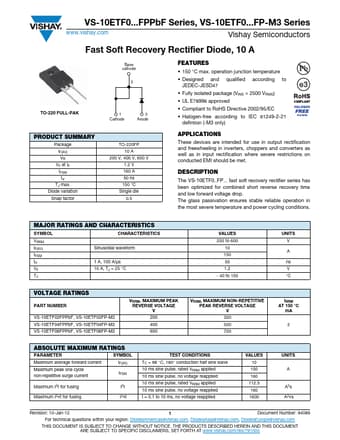

Preview of VS-10ETF02FPPbF PDF

Datasheet Details

Part number:

VS-10ETF02FPPbF

Manufacturer:

Vishay ↗

File Size:

227.74 KB

Description:

Fast soft recovery rectifier diode.
VS-10ETF0FPPbF Series, VS-10ETF0FP-M3 Series www.vishay.com Vishay Semiconductors Fast Soft Recovery Rectifier Diode, 10 A Base cathode 2 TO-220 .
