VS-122NQ030PbF

High Performance Schottky Rectifiers

VS-122NQ030PbF Features

* 150 °C TJ operation

* Low forward voltage drop

* High frequency operation

* Guard ring for enhanced ruggedness and long term reliability

* Designed and qualified for industrial level

* UL approved file E222165

* Material categorization: for d

VS-122NQ030PbF General Description

The VS-122NQ.. high current Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in high current switching power supplies, plating .

VS-122NQ030PbF Datasheet (129.39 KB)

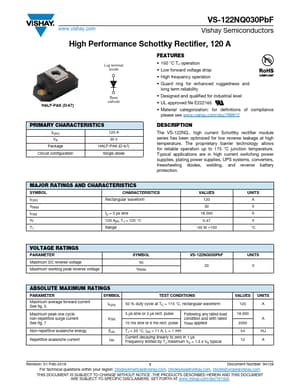

Preview of VS-122NQ030PbF PDF

Datasheet Details

Part number:

VS-122NQ030PbF

Manufacturer:

Vishay ↗

File Size:

129.39 KB

Description:

High performance schottky rectifiers.
www.vishay.com VS-122NQ030PbF Vishay Semiconductors High Performance Schottky Rectifier, 120 A Lug terminal anode HALF-PAK (D-67) Base cathode P.
