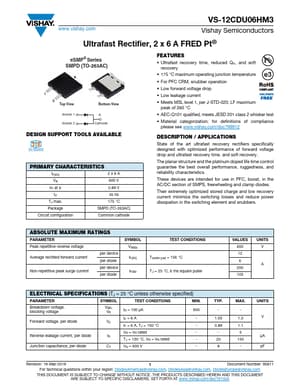

datasheet Preview Page 1 from Datasheet4u.com

VS-12CDU06HM3 Ultrafast Rectifier

www.vishay.com VS-12CDU06HM3 Vishay Semiconductors Ultrafast Rectifier, 2 x 6 A FRED Pt® eSMP® Series SMPD (TO-263AC) K 1 2 Top View Bottom View .
/ APPLICATIONS State of the art ultrafast recovery rectifiers specifically designed with optimized performance of forward voltage drop and ultrafast r.

VS-12CDU06HM3-Vishay.pdf

VS-12CDU06HM3 Datasheet Preview — Preview of VS-12CDU06HM3 PDF

Datasheet Details

Part number:

VS-12CDU06HM3

Manufacturer:

Vishay ↗

File Size:

136.54 KB

Description:

Ultrafast Rectifier

Features

* Ultrafast recovery time, reduced Qrr, and soft recovery
* 175 °C maximum operating junction temperature
* For PFC CRM, snubber operation
* Low forward voltage drop
* Low leakage current
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Applications

* State of the art ultrafast recovery rectifiers specifically designed with optimized performance of forward voltage drop and ultrafast recovery time, and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness, and reliability ch
