VS-12CTQ040-M3, VS-12CTQ035-M3, High Performance Schottky Rectifier

VS-12CTQ035-M3, VS-12CTQ040-M3, VS12CTQ045-M3 www.vishay.com Vishay Semiconductors High Performance Schottky Rectifier, 2 x 6 A Base common cathod.
The VS-12CTQ center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

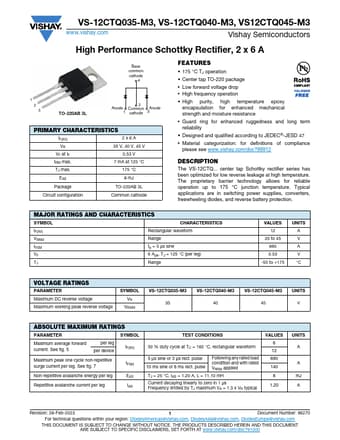

datasheet Preview Page 1 from Datasheet4u.com

VS-12CTQ035-M3-Vishay.pdf

VS-12CTQ040-M3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-12CTQ040-M3, VS-12CTQ035-M3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-12CTQ040-M3, VS-12CTQ035-M3

Manufacturer:

Vishay ↗

File Size:

171.63 KB

Description:

High Performance Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-12CTQ040-M3, VS-12CTQ035-M3.
Please refer to the document for exact specifications by model.

Features

* 175 °C TJ operation
* Center tap TO-220 package
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness an

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM Range IFSM tp = 5 μs sine VF 6 Apk, TJ = 125 °C (per leg) TJ Range VALUES 12 35 to 45 690 0.53 -55
