VS-12CTQ040-N3 Schottky Rectifier

The VS-12CTQ center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes,.

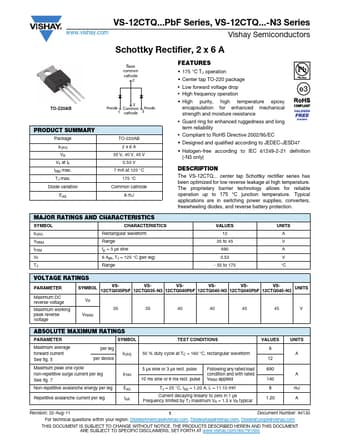

VS-12CTQPbF Series, VS-12CTQ-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 6 A Base common cathode 2 TO-220AB 2 Anode Common Anode 1 cathode 3 PRODUCT SUMMARY Package IF(AV) VR VF at IF IRM max. TJ max. Diode variation EAS TO-220AB 2x6A 35 V, 40 V, 45 V 0.53 V 7 mA at 125 °C 175 °C Common cathode 8 mJ MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangular waveform Range tp = 5 μs sine VF 6 Apk, TJ = 125 °C (per leg) TJ Range .

VS-12CTQ040-N3 Features

* 175 °C TJ operation

* Center tap TO-220 package

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness an
