VS-12TQ045S-M3, VS-12TQ035S-M3, High Performance Schottky Rectifier

VS-12TQ035S-M3, VS-12TQ040S-M3, VS-12TQ045S-M3 www.vishay.com Vishay Semiconductors High Performance Schottky Rectifier, 15 A 2 1 3 D2PAK (TO-263A.
The VS-12TQS-M3 Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

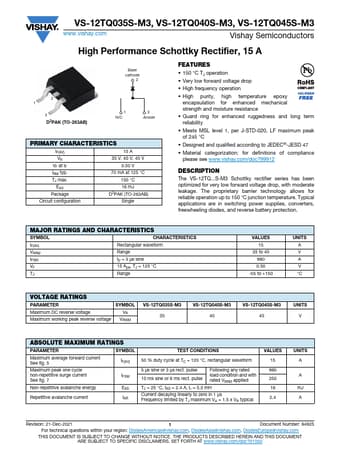

datasheet Preview Page 1 from Datasheet4u.com

VS-12TQ035S-M3-Vishay.pdf

VS-12TQ045S-M3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-12TQ045S-M3, VS-12TQ035S-M3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-12TQ045S-M3, VS-12TQ035S-M3

Manufacturer:

Vishay ↗

File Size:

176.74 KB

Description:

High Performance Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-12TQ045S-M3, VS-12TQ035S-M3.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM VF Range tp = 5 μs sine 15 Apk, TJ = 125 °C TJ Range VALUES 15 35 to 45 990 0.50 -55 to +150 UNI
