VS-12TQ045SPbF, VS-12TQ035SPbF High Performance Schottky Rectifier

VS-12TQ045SPbF Description

VS-12TQ035SPbF, VS-12TQ040SPbF, VS-12TQ045SPbF www.vishay.com Vishay Semiconductors High Performance Schottky Rectifier, 15 A Base cathode 2 D2PA.
The VS-12TQSPbF Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

VS-12TQ045SPbF Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

VS-12TQ045SPbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM Range IFSM tp = 5 μs sine VF 15 Apk, TJ = 125 °C TJ Range VALUES 15 35 to 45 990 0.50 -55 to +150 UN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-12TQ045SPbF, VS-12TQ035SPbF. Please refer to the document for exact specifications by model.

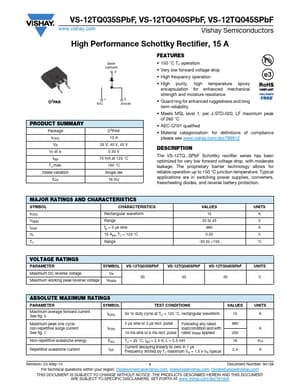

datasheet Preview Page 2 datasheet Preview Page 3
