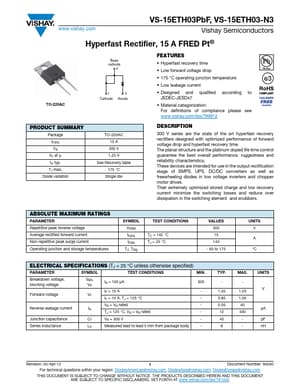

datasheet Preview Page 1 from Datasheet4u.com

VS-15ETH03-N3, VS-15ETH03PbF Hyperfast Rectifier

www.vishay.com VS-15ETH03PbF, VS-15ETH03-N3 Vishay Semiconductors Hyperfast Rectifier, 15 A FRED Pt® TO-220AC Base cathode 2 13 Cathode Anode FEA.
300 V series are the state of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop and hyperfast recovery.

VS-15ETH03PbF-Vishay.pdf

VS-15ETH03-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-15ETH03-N3, VS-15ETH03PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-15ETH03-N3, VS-15ETH03PbF

Manufacturer:

Vishay ↗

File Size:

159.47 KB

Description:

Hyperfast Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-15ETH03-N3, VS-15ETH03PbF.
Please refer to the document for exact specifications by model.

Features

* Hyperfast recovery time
* Low forward voltage drop
* 175 °C operating junction temperature
* Low leakage current
* Designed and qualified according to JEDEC-JESD47
* Material categorization: For definitions of compliance please see www. vishay. com/doc
