VS-15ETX06-1PbF, VS-15ETX06SPbF - Hyperfast Rectifier

Vishay

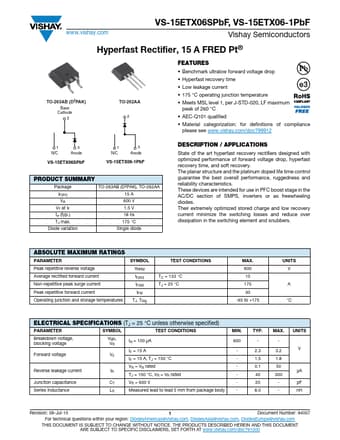

VS-15ETX06-1PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-15ETX06-1PbF, VS-15ETX06SPbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VS-15ETX06-1PbF, VS-15ETX06SPbF
Manufacturer	Vishay ↗
File Size	162.23 KB
Description	Hyperfast Rectifier
Datasheet	VS-15ETX06SPbF-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VS-15ETX06-1PbF, VS-15ETX06SPbF. Please refer to the document for exact specifications by model.

VS-15ETX06-1PbF Product details

Description

/ APPLICATIONS State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, rugged

Features

Benchmark ultralow forward voltage drop.
Hyperfast recovery time.
Low leakage current.
175 °C operating junction temperature.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 13 N/C Anode VS-15ETX06SPbF 1 N/C 3 Anode VS-15ETX06-1PbF.
