VS-15ETX06PbF - Hyperfast Rectifier

Vishay

The VS-15ETX06PbF by Vishay is a Hyperfast Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

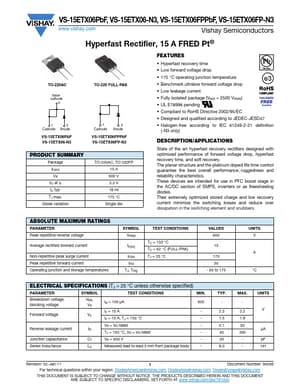

VS-15ETX06PbF Hyperfast Rectifier by Vishay - Datasheet Preview — Official preview page of the **VS-15ETX06PbF** Hyperfast Rectifier datasheet (Vishay).

Datasheet Details

Part number	VS-15ETX06PbF
Manufacturer	Vishay
File Size	196.92 KB
Description	Hyperfast Rectifier
Datasheet	VS-15ETX06PbF-Vishay.pdf
Additional preview pages of the VS-15ETX06PbF datasheet.

VS-15ETX06PbF Product details

Description

APPLICATIONS State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery

Features

Hyperfast recovery time.
Low forward voltage drop.
175 °C operating junction temperature.
Benchmark ultralow forward voltage drop.
Low leakage current.
Fully isolated package (VINS = 2500 VRMS).
UL E78996 pending.
Compliant to RoHS Directive 2002/95/EC.
Designed and qualified according to JEDEC-JESD47.
Halogen-free according to IEC 61249-2-21 definition (-N3 only).
