VS-160MT160C Three Phase Bridge

VS-160MT160C Description

www.vishay.com VS-160MTC Series Vishay Semiconductors Three Phase Bridge, 160 A (Power Modules) MTC .
A range of extremely compact, encapsulated three phase bridge rectifiers offering efficient and reliable operation.

VS-160MT160C Features

* Blocking voltage up to 1800 V
* High surge capability
* High thermal conductivity package, electrically insulated case
* Excellent power volume ratio
* 3600 VRMS isolating voltage
* UL pending
* Designed for industrial level
* Materia

VS-160MT160C Applications

*  MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS VALUES IO (1) IFSM TC 50 Hz 60 Hz 257 85 1540 1610 50 Hz I2t 60 Hz 11 860 10 825 I2t 118 580 VRRM TStg TJ Range Range Range 1600 to 1800 -40 to +125 -40 to +150 Note

📥 Download Datasheet

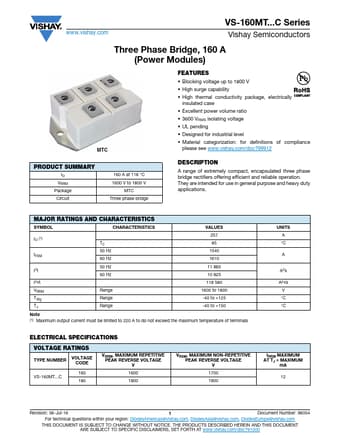

Preview of VS-160MT160C PDF
datasheet Preview Page 2 datasheet Preview Page 3
