VS-160MT180C, VS-160MT160C Three Phase Bridge

VS-160MT180C Description

www.vishay.com VS-160MTC Series Vishay Semiconductors Three Phase Bridge, 160 A (Power Modules) MTC .
A range of extremely compact, encapsulated three phase bridge rectifiers offering efficient and reliable operation.

VS-160MT180C Features

* Blocking voltage up to 1800 V
* High surge capability
* High thermal conductivity package, electrically insulated case
* Excellent power volume ratio
* 3600 VRMS isolating voltage
* UL pending
* Designed for industrial level
* Materia

VS-160MT180C Applications

*  MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS VALUES IO (1) IFSM TC 50 Hz 60 Hz 257 85 1540 1610 50 Hz I2t 60 Hz 11 860 10 825 I2t 118 580 VRRM TStg TJ Range Range Range 1600 to 1800 -40 to +125 -40 to +150 Note

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-160MT180C, VS-160MT160C. Please refer to the document for exact specifications by model.

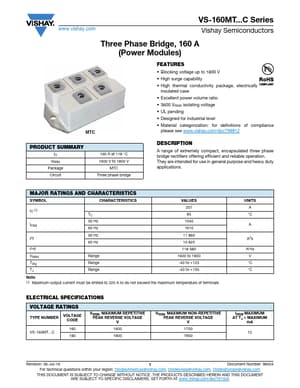

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-160MT180C, VS-160MT160C
Manufacturer
Vishay ↗
File Size
134.67 KB
Datasheet
VS-160MT160C-Vishay.pdf
Description
Three Phase Bridge
Note
This datasheet PDF includes multiple part numbers: VS-160MT180C, VS-160MT160C.
Please refer to the document for exact specifications by model.
