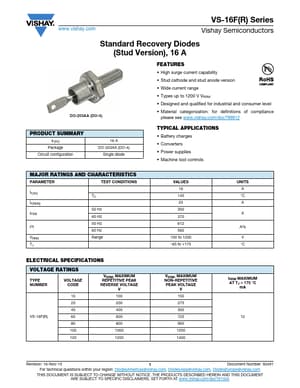

datasheet Preview Page 1 from Datasheet4u.com

VS-16F100, VS-16F10 Standard Recovery Diodes

www.vishay.com VS-16F(R) Series Vishay Semiconductors Standard Recovery Diodes (Stud Version), 16 A DO-203AA (DO-4) .

VS-16F10-Vishay.pdf

VS-16F100 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-16F100, VS-16F10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-16F100, VS-16F10

Manufacturer:

Vishay ↗

File Size:

169.41 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VS-16F100, VS-16F10.
Please refer to the document for exact specifications by model.

Features

* High surge current capability
* Stud cathode and stud anode version
* Wide current range
* Types up to 1200 V VRRM
* Designed and qualified for industrial and consumer level
* Material categorization: for definitions of compliance please see www. vish

Applications

* Battery charges
* Converters
* Power supplies
* Machine tool controls MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2t VRRM TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 16 140 25 350 370 612 560 100 to 1200 -65 to +175 UNITS A
