VS-16F60, VS-16F10 Standard Recovery Diodes

VS-16F60 Description

www.vishay.com VS-16F(R) Series Vishay Semiconductors Standard Recovery Diodes (Stud Version), 16 A DO-203AA (DO-4) .

VS-16F60 Features

* High surge current capability
* Stud cathode and stud anode version
* Wide current range
* Types up to 1200 V VRRM
* Designed and qualified for industrial and consumer level
* Material categorization: for definitions of compliance please see www. vish

VS-16F60 Applications

* Battery charges
* Converters
* Power supplies
* Machine tool controls MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2t VRRM TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 16 140 25 350 370 612 560 100 to 1200 -65 to +175 UNITS A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-16F60, VS-16F10. Please refer to the document for exact specifications by model.

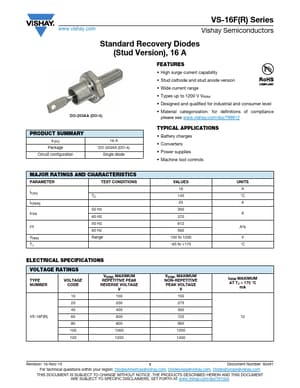

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-16F60, VS-16F10
Manufacturer
Vishay ↗
File Size
169.41 KB
Datasheet
VS-16F10-Vishay.pdf
Description
Standard Recovery Diodes
Note
This datasheet PDF includes multiple part numbers: VS-16F60, VS-16F10.
Please refer to the document for exact specifications by model.
