VS-16TTS08-M3 Phase Control SCR

The VS-16TTS high voltage series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operating up to 125 °C junction temperature. OUTPUT CURRENT IN TYPICAL APPLICATIONS APPLICATIONS.

VS-16TTS08-M3 Features

* Designed and qualified according to JEDEC®-JESD 47

* 125 °C max. operating junction temperature

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS

* Typical usage is in input rectification crowbar (soft start) a

VS-16TTS08-M3-Vishay.pdf

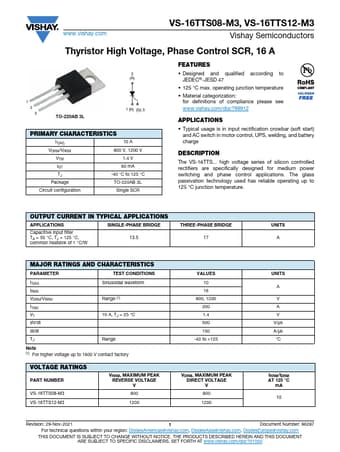

VS-16TTS08-M3 Datasheet Preview — Preview of VS-16TTS08-M3 PDF

Datasheet Details

Part number:

VS-16TTS08-M3

Manufacturer:

Vishay ↗

File Size:

202.05 KB

Description:

Phase control scr.
