VS-16TTS08S-M3 Thyristor High Voltage / Surface Mount Phase Control SCR

The VS-16TTS..S-M3 high voltage series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125 °C junction temperature. OUTPUT CURRENT IN TYPICAL APPLICATIONS APPLIC.

VS-16TTS08S-M3 Features

* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C

* Designed and JEDEC®-JESD 47 qualified according

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS

* Input rectification (soft start)

VS-16TTS08S-M3-Vishay.pdf

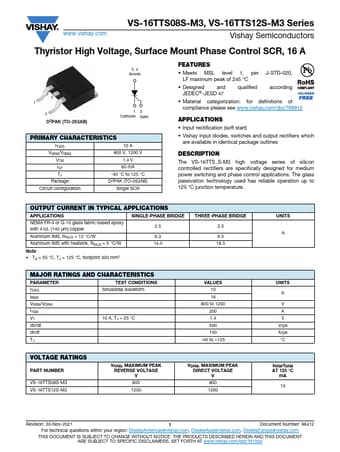

VS-16TTS08S-M3 Datasheet Preview — Preview of VS-16TTS08S-M3 PDF

Datasheet Details

Part number:

VS-16TTS08S-M3

Manufacturer:

Vishay ↗

File Size:

172.98 KB

Description:

Thyristor high voltage / surface mount phase control scr.
